396-068-560-812

Edgeboard Connectors Overview

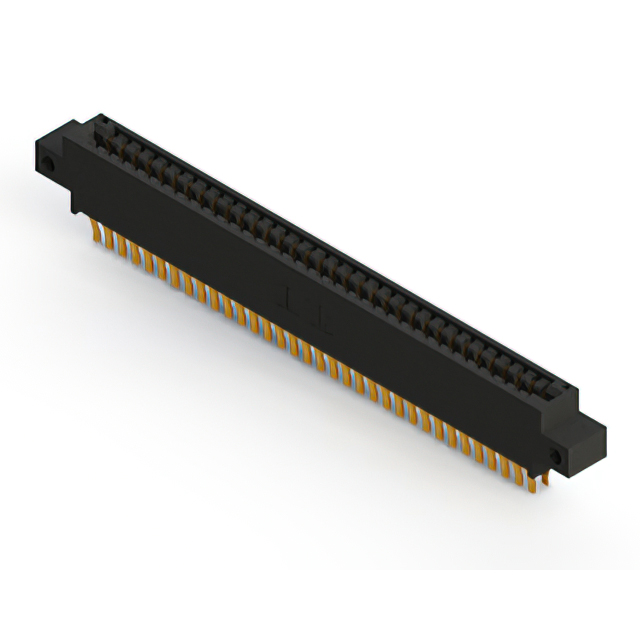

The EDAC Inc. 396-068-560-812 is a dual-edge female card edge connector designed for vertical mounting applications. It features 68 positions with a 0.125-inch (3.175 mm) pitch and supports board thicknesses of 1.57 mm. The contacts are gold-plated copper alloy with a 10.0 µin thickness, ensuring reliable signal transmission. This component utilizes a cantilever contact type and is housed in a black thermoplastic polyester insulator. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated cantilever contacts for enhanced conductivity
• Vertical mounting design for space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware operating in harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count and plating specifications. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and compliance status.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with a 0.125-inch pitch is required. Consider the vertical mounting orientation and gold-plated contact durability for high-cycle applications. Verify that the housing material and temperature rating align with the operational environment constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series, which specializes in standard card edge connectors. The series offers various position counts and mounting options tailored for diverse electronic assembly needs. The 396 series is recognized for its reliability in industrial and specialized market segments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Verify mechanical dimensions and electrical ratings match the original design requirements.
