396-080-521-812

Edgeboard Connectors Overview

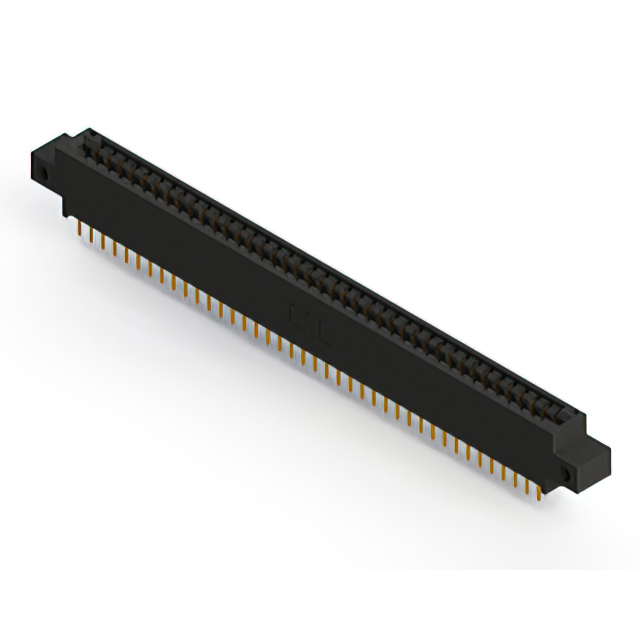

The EDAC Inc. 396-080-521-812 is a dual-sided card edge connector designed for through-hole mounting. It features 80 positions with a 0.125-inch (3.18mm) pitch and two rows of contacts. The connector utilizes gold-plated cantilever spring contacts housed in a black thermoplastic polyester insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-sided female contact configuration for reliable signal transmission
• Gold-plated cantilever spring terminals ensure low contact resistance
• Thermoplastic polyester insulation provides thermal stability
• Through-hole termination method secures PCB installation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Automotive electronic module connections
• Medical device circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffix codes against official manufacturer documentation to confirm specific flange, plating, or packaging variations. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering. Ensure compatibility with target board thickness specifications during procurement planning.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection with a 0.125-inch pitch is required. Verify that the target printed circuit board thickness falls within the specified operational range. Consider the operating temperature requirements and environmental conditions to ensure the thermoplastic polyester housing meets application standards.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations for general-purpose interconnect applications. The 396-080 variant specifically addresses high-density connection needs within the standard spacing family.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 396 series parts sharing identical pitch and position counts. Verify mechanical dimensions and electrical characteristics before substituting with generic equivalents.
