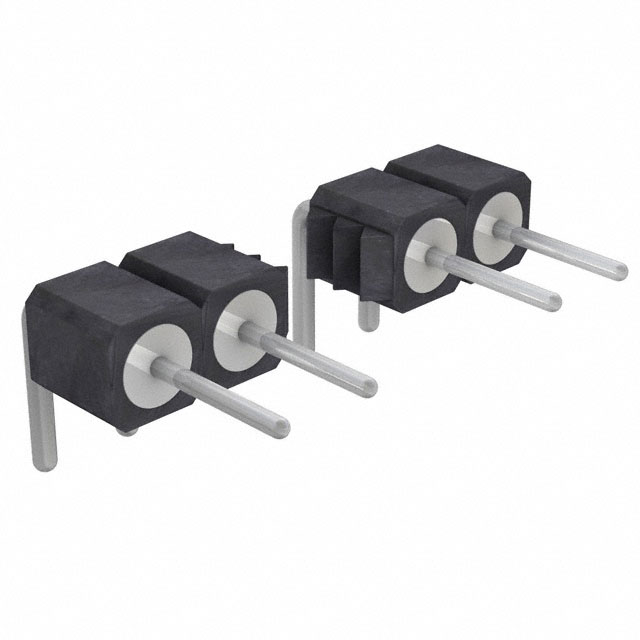

399-80-119-10-009101

399-80-119-10-009101 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN HEADER R/A 19POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 399-80-119-10-009101

• Description：CONN HEADER R/A 19POS 2.54MM
• Series：399
• Mfr：Preci-Dip
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：19
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.157" (4.00mm)
• Contact Length - Post：0.126" (3.20mm)
• Overall Contact Length：-
• Insulation Height：0.100" (2.54mm)
• Contact Shape：Circular
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• Features：-
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：150VDC

Headers, Male Pins datasheet and documents for 399-80-119-10-009101
