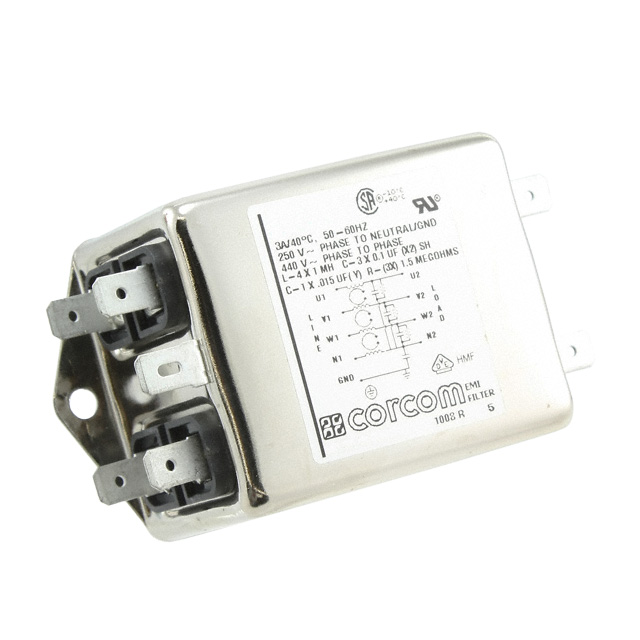

3AYO1

$16.55

Description：LINE FILTER 3A CHASSIS MOUNT
Series：AYO
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:f8ff613d50a2 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 3A CHASSIS MOUNT
Series：AYO
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：3:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：250 V
Voltage - Rated AC (Phase to Phase)：440 V

Download product information

3AYO1

Overview

The TE Connectivity Corcom Filters 3AYO1 is a three-phase (Wye) EMC/EMI line filter designed for industrial equipment. It features a chassis mount style with faston terminals and operates at 50/60 Hz. The unit supports a maximum AC voltage of 440V and a current rating of 3A. Key electrical parameters include a leakage current of 3mA, an inductance of 1mH, and a capacitance value of 100nF. It functions within a temperature range of -10°C to 40°C.

Feature Summary

Provides EMI/RFI noise reduction for three-phase power lines
Designed for general-purpose industrial equipment applications
Utilizes a Wye configuration for effective power quality improvement

Applications

General-purpose industrial equipment
Three-phase power line filtering
Industrial machinery requiring EMI suppression

Procurement Notes

Verify the specific terminal type and mounting requirements against your system design before ordering. Confirm that the 3A current rating and 440VAC voltage limits align with your operational parameters. Ensure compatibility with the required operating frequency range of 50Hz or 60Hz. Check for any specific certification needs such as UL or VDE compliance for your region.

Selection Notes

Select this component when a three-phase Wye configuration is required for noise suppression in industrial settings. Consider the 3A current capacity and 440VAC voltage rating to ensure adequate performance margins. Evaluate the chassis mount style and faston terminal options for integration ease. Verify thermal management capabilities within the specified operating temperature range.

Part Context

This part belongs to the Corcom AYO series of low current RFI filters manufactured by TE Connectivity. The series focuses on providing compact filtering solutions for three-phase applications. It is distinct from single-phase variants and higher current models within the broader Corcom product line.
