Product Detailed Parameters
- Description：LINE FLTR 440VAC 100A CHASS MNT
- Series：3C
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, cURus, SEMKO
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：-
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

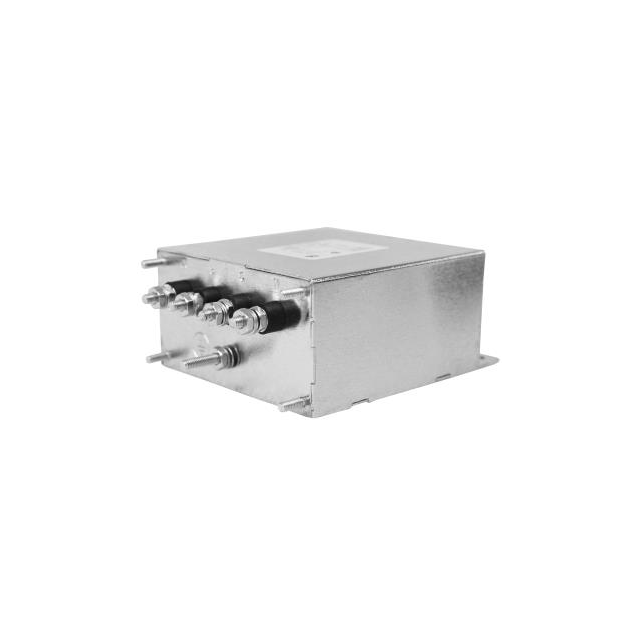

The Astrodyne TDI 3C100 is a three-phase (Delta) EMC/EMI power line filter module designed for industrial environments. It supports a nominal voltage of 440VAC and operates at standard frequencies of 50Hz or 60Hz. The unit provides a continuous current rating of 100A. This two-stage filtration system is engineered to suppress electromagnetic interference across power lines, ensuring compliance with regulatory standards while maintaining stable power delivery for sensitive equipment.
Feature Summary
- Two-stage EMI/EMC filtration architecture
- Three-phase Delta configuration
- Chassis-mountable design
Applications
- Industrial power supplies
- Battery charging systems
- General purpose power conditioning
Procurement Notes
Verify the specific datasheet version for the 3C100 model to confirm exact attenuation curves and terminal configurations. Ensure the installation environment meets the required thermal dissipation standards for chassis-mounted modules. Confirm that the input voltage and frequency align with the 440VAC 50/60Hz specifications before integration into the power distribution network.
Selection Notes
Select this component when a robust two-stage solution is required for three-phase Delta systems operating at 100A. It is suitable for applications demanding significant noise suppression in industrial settings. Consider the chassis-mount form factor for integration into existing control panels or enclosures where space efficiency and high current capacity are primary requirements.
Part Context
This module belongs to the Astrodyne TDI power line filter series, which offers comprehensive EMI/EMC solutions. The company provides a wide range of filters from 1A to 2,500A for commercial, medical, industrial, and military sectors. The 3C100 specifically addresses high-current three-phase needs within this broader portfolio.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or equivalent models within the same product family.
