3DAF1

Description：LINE FILTER 125VDC 3A PANEL MNT
Series：DA, Corcom
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:c5d74ae6f12f Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125VDC 3A PANEL MNT
Series：DA, Corcom
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：125V
Voltage - Rated AC：-
Current：3:00 AM
Frequency - Operating：-
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 55°C
Mounting Type：Panel Mount
Termination Style：Quick Connect
Inductance：1.45mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

3DAF1

Overview

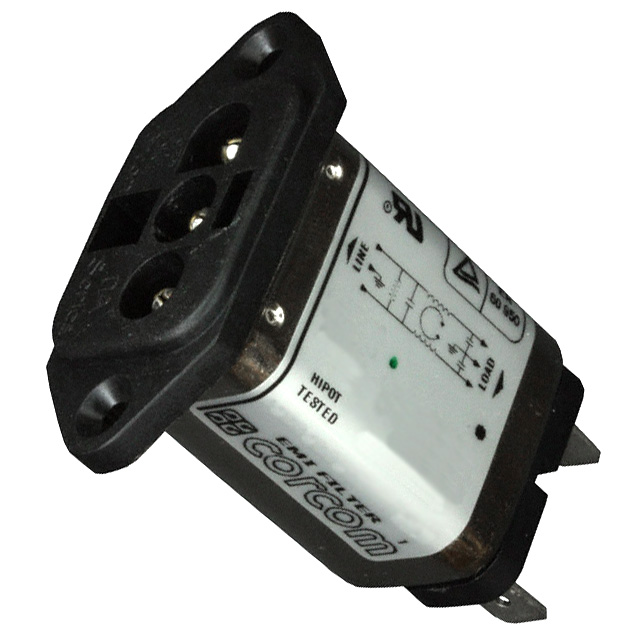

The TE Connectivity Corcom 3DAF1 is a single-phase EMC/EMI line filter designed for DC applications up to 125 VDC. It features a compact form factor with a 3-pin inlet connector and quick connect terminals. The unit provides general-purpose noise reduction in power lines, supporting a current rating of 3 A.

Feature Summary

Compact design suitable for space-constrained installations
Utilizes a 3-pin inlet connector configuration
Equipped with quick connect terminal style for ease of assembly

Applications

General-purpose DC power line filtering
Electrical noise reduction in DC circuits
Single-phase DC power entry modules

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before integration. Confirm that the quick connect terminal style matches your wiring infrastructure. Ensure the component meets all necessary safety certifications for your target market.

Selection Notes

Select this model for DC applications requiring up to 125 VDC and 3 A current handling. The compact size and 3-pin inlet connector make it suitable for tight spaces. Verify compatibility with quick connect wiring methods during the design phase.

Part Context

This component belongs to the TE Connectivity Corcom DA Series, which specializes in general-purpose line filters for DC applications. The series is characterized by its compact design and suitability for reducing electrical interference in various DC power systems.
