Product Detailed Parameters
- Description：LINE FILTER 125VDC 3A PANEL MNT
- Series：DA, Corcom
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：125V
- Voltage - Rated AC：-
- Current：3:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL, VDE
- Operating Temperature：-10°C ~ 55°C
- Mounting Type：Panel Mount
- Termination Style：Quick Connect
- Inductance：1.45mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

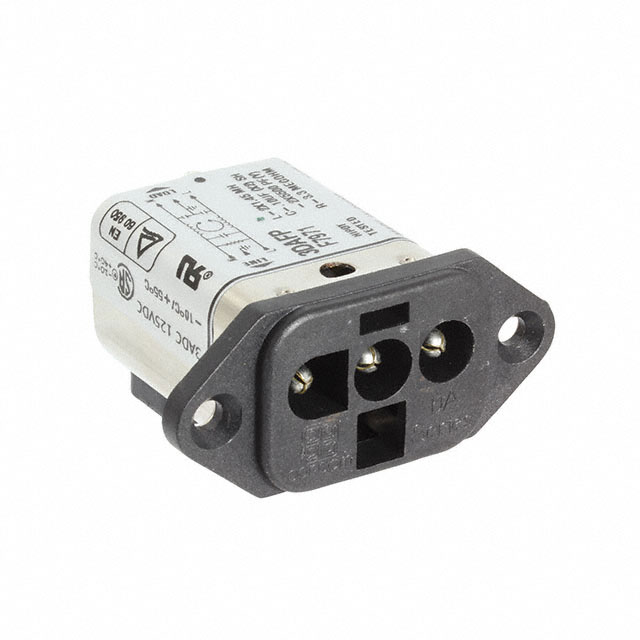

The 3DAFP is a DC EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It is rated for 125VDC and supports a current of 3A at operating frequencies between 50Hz and 60Hz. The component utilizes a single-stage filtering configuration designed for panel mounting applications. Electrical termination is achieved via quick connect terminals, facilitating integration into direct current power systems requiring electromagnetic interference suppression.
Feature Summary
- Single-stage EMI/EMC filtering architecture
- Panel mount installation style
- Quick connect terminal interface
Applications
- DC power supply input stages
- Electronic equipment requiring EMI suppression
- Industrial control panels
Procurement Notes
Verify the specific datasheet version to confirm exact attenuation curves and physical dimensions before finalizing design integration. Ensure that the quick connect terminal specifications match the mating connector requirements in the target assembly. Confirm compliance with relevant safety standards applicable to the end-use environment.
Selection Notes
Select this component when a single-stage solution is sufficient for the required noise reduction in low-voltage DC circuits. Evaluate the 3A current rating against peak load conditions to ensure adequate thermal performance. Consider the panel mounting requirement during mechanical layout planning to ensure proper clearance and access for wiring.
Part Context
This part belongs to the TE Connectivity Corcom Filters lineup, which specializes in electromagnetic interference components for various industrial and commercial applications. The product series includes both AC and DC filters designed to meet stringent emission and immunity standards for sensitive electronic equipment.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models through detailed electrical parameter comparison and mechanical fitment analysis.
