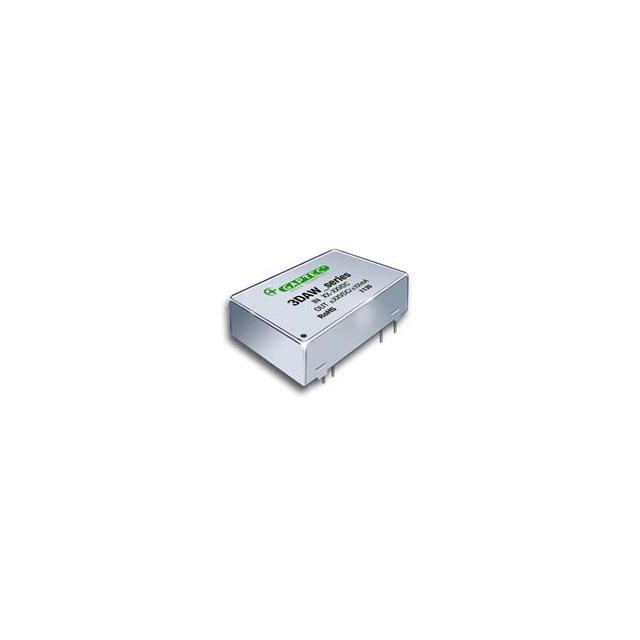

3DAW_1203S1.5

3DAW_1203S1.5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 3DAW_1203S1.5

• Description：DC-DC INDUSTRIAL
• Series：3DAW_S&3DAW_D (3W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：909mA
• Power (Watts)：2.999 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：74%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 7 Leads
• Size / Dimension：1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-
