Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A CHASS MNT
- Series：3E
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, cURus, SEMKO
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (10-32)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

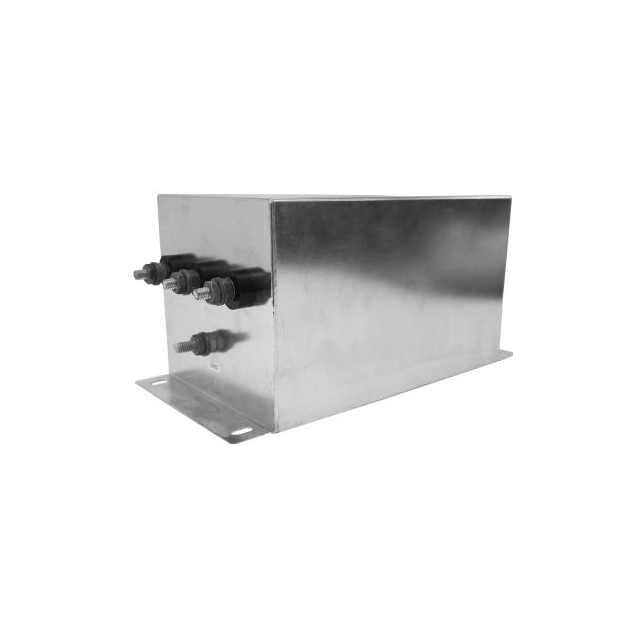

The Astrodyne TDI 3E15D H is a three-phase delta power line filter belonging to the 3E series. It features a two-stage configuration designed for industrial power conditioning applications. The unit supports a rated voltage of 440 VAC and operates at frequencies of 50 Hz or 60 Hz. It utilizes a chassis mount installation style with bolt-in termination types. The component is classified under power condition subcategories and is manufactured by Astrodyne TDI.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Three-phase delta topology for industrial power systems
- Chassis mount design with bolt-in connections
Applications
- Industrial machinery power conditioning
- Aerospace electrical systems
- Military equipment power supplies
Procurement Notes
Verify availability through authorized distributors as stock may be limited. Confirm RoHS compliance status via official documentation before procurement. Ensure mounting hardware compatibility with chassis specifications. Check regional sales restrictions prior to ordering. Validate datasheet revisions for accurate technical parameters.
Selection Notes
Select this model for high-noise environments requiring two-stage attenuation. Ensure input voltage matches 440 VAC requirements. Verify current ratings against load specifications. Confirm physical dimensions fit available chassis space. Consider bolt-in termination for secure mechanical attachment in vibration-prone settings.
Part Context
The 3E15D H belongs to the 3E series of power line filters from Astrodyne TDI. This series targets demanding markets including aerospace, industrial, medical, and military sectors. The manufacturer specializes in EMI/EMC/RFI filter solutions for global applications. The product falls under the broader category of power condition components.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Ensure replacement parts maintain identical phase configuration and voltage ratings. Verify that alternative models support the same two-stage filtering requirement. Confirm mechanical mounting compatibility before substitution.
