3EDP

Overview

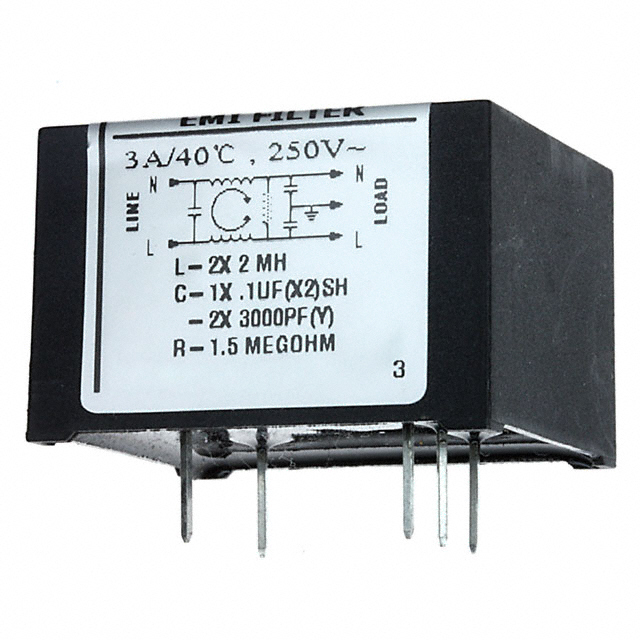

The TE Connectivity Corcom Filters 3EDP is a single-phase EMC/RFI power line filter designed for commercial applications. It features a rated voltage of 250 VAC and a current rating of 3 A. This component integrates EMI suppression capabilities directly into the power entry module, ensuring compliance with electromagnetic compatibility standards while managing electrical noise in sensitive electronic systems.

Feature Summary

• Integrates single-phase EMI/RFI filtering within a compact power entry module design
• Provides conducted noise attenuation to support system electromagnetic compatibility
• Rated for 250 VAC operation with a 3 A current capacity

Applications

• Industrial automation equipment
• Commercial medical devices
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version and regulatory certifications (UL, CSA, VDE) required for your target market before procurement. Confirm that the 3 A current rating and 250 VAC voltage specifications align precisely with your system's power entry requirements to ensure safe and compliant operation.

Selection Notes

Select this component when a combined power inlet and EMI filter solution is required for single-phase AC circuits. Ensure the 3 A rating meets the load demands and verify that the physical mounting constraints accommodate the module dimensions. Consider the operating temperature range and environmental conditions during selection.

Part Context

This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in electromagnetic compatibility solutions. The series includes various filtered IEC inlets and chokes designed to suppress conducted noise. These components are engineered to meet international safety and performance standards for global market acceptance.

Replacement Considerations

Consult official substitution guides or manufacturer documentation for verified equivalent parts. Do not assume cross-compatibility based on generic ratings alone; verify pinout, mounting, and electrical characteristics against the original specification sheet.
