3KEBS1AFPD

Overview

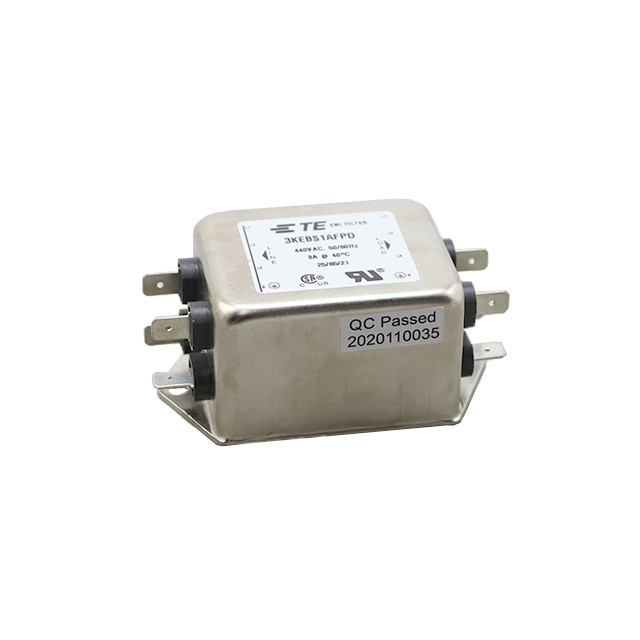

The 3KEBS1AFPD is a single-stage, three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with flange mounting and utilizes faston terminals for electrical connections. The component is rated for a continuous current of 3 A at a voltage of 440 VAC and operates at a frequency of 50 Hz. Key specifications include a maximum leakage current of 3 mA and compliance with UL and CSA safety standards.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed for secure chassis or panel mounting via flange
• Utilizes faston terminal style for straightforward circuit integration

Applications

• Industrial machinery power distribution systems
• Three-phase equipment requiring EMI noise reduction
• Control panels and enclosures for power conditioning

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the faston terminal dimensions match existing wiring harnesses. Check for any recent product change notices or lifecycle status updates directly from TE Connectivity before finalizing procurement plans.

Selection Notes

Select this component when a three-phase filter is required for 440VAC applications at 50Hz. Ensure the chassis mounting configuration aligns with the enclosure design. Verify that the 3A current rating meets the load requirements and that faston termination is suitable for the available connection methods.

Part Context

This component belongs to the Corcom power line filter series, which specializes in EMI/RFI filtering solutions for industrial and commercial applications. The KEBS series typically offers robust performance for three-phase systems, providing essential noise attenuation to protect sensitive electronic loads from conducted interference on power lines.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and terminal type to ensure functional equivalence if sourcing replacements.
