3KEBS1AFPDDM

Overview

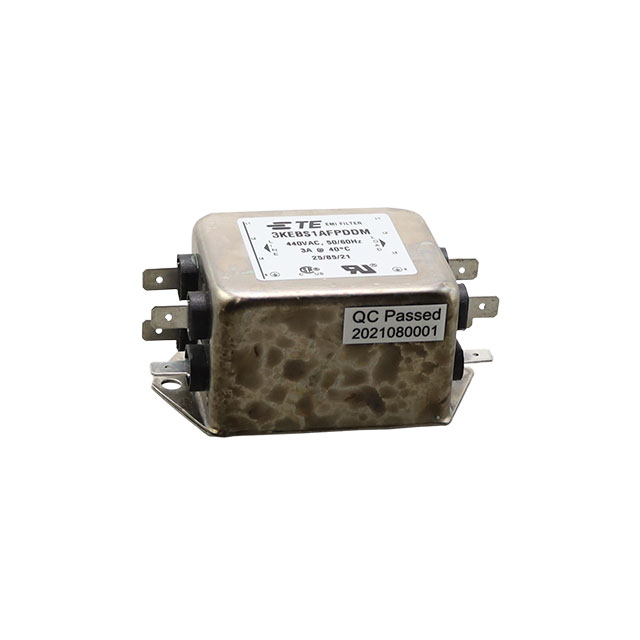

The TE Connectivity Corcom Filters 3KEBS1AFPDDM is a three-phase EMI/EMC power line filter designed for chassis mounting. It features a rated current of 3 A and operates at a voltage rating of 440 VAC. The component supports 50Hz and 60Hz frequencies with a leakage current of 3 mA. Approvals include UL and CSA certifications.

Feature Summary

• Provides electromagnetic interference (EMI) and radio frequency interference (RFI) filtering for three-phase power lines
• Designed for direct chassis mounting applications
• Includes quick-connect terminal interface for installation

Applications

• Industrial machinery power supply input stages
• Three-phase motor drive systems requiring noise suppression
• Medical equipment power distribution units

Procurement Notes

Verify the specific datasheet version to confirm if the component is currently active or scheduled for obsolescence, as some sources indicate it may be discontinued. Ensure that the 440VAC rating and 3A current capacity align with your system's electrical requirements before finalizing procurement decisions.

Selection Notes

Select this model when three-phase EMI filtering is required for 440VAC systems with a maximum load of 3A. Consider the chassis mount style and quick-connect terminals during mechanical design integration. Verify that the low leakage current specification meets safety standards for sensitive medical or precision electronic environments.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial applications. The 3KEBS1AFPDDM variant specifically addresses three-phase noise reduction needs, distinguishing it from single-phase counterparts within the broader Corcom product portfolio.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer channels for potential cross-reference alternatives if this specific model is unavailable.
