3KEBS1BFPD

Overview

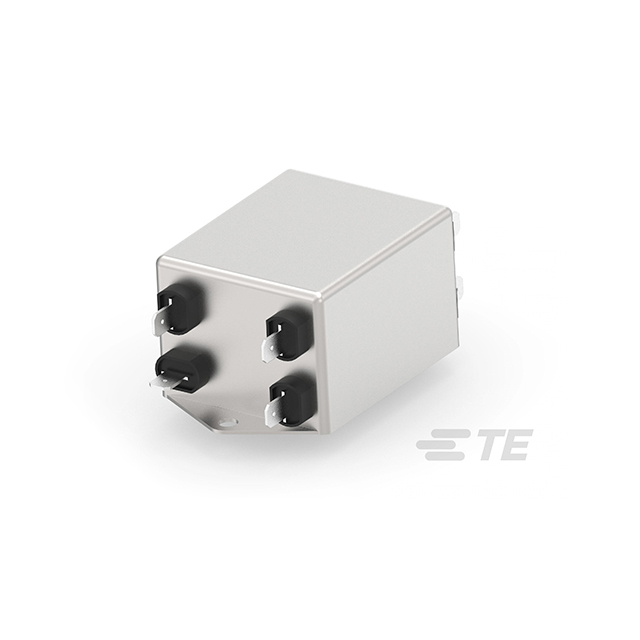

The TE Connectivity Corcom Filters 3KEBS1BFPD is a three-phase (Delta) EMC/EMI power line filter designed for industrial applications. It features a single-stage configuration with a rated voltage of 520VAC and a current capacity of 3A at 50/60Hz. The unit utilizes quick connect terminals for circuit integration and supports chassis mounting via a flange style. This component provides electromagnetic interference suppression for three-phase power systems.

Feature Summary

• Provides EMI/RFI noise suppression for three-phase Delta power circuits
• Features a single-stage filtering architecture for compact design
• Equipped with quick connect terminals for rapid electrical integration

Applications

• Industrial machinery power input stages
• Three-phase motor drive systems
• Commercial equipment requiring EMI mitigation

Procurement Notes

Verify the specific phase configuration (Delta) and voltage rating (520VAC) against system requirements before procurement. Confirm that the quick connect terminal type matches existing wiring harnesses. Ensure the chassis mounting flange dimensions align with the enclosure cutout specifications to guarantee proper physical installation and grounding.

Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels in a three-phase environment. Consider the 3A current rating and 520VAC limit to ensure compatibility with the load. Evaluate the quick connect interface against available termination methods to avoid adapter requirements during assembly.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for various industrial and commercial applications. The product line includes single-phase and three-phase options with different mounting styles and current ratings to support diverse power management needs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components by matching electrical ratings, phase configuration, and mechanical mounting specifications.
