3KEBS1BFPDDM

Overview

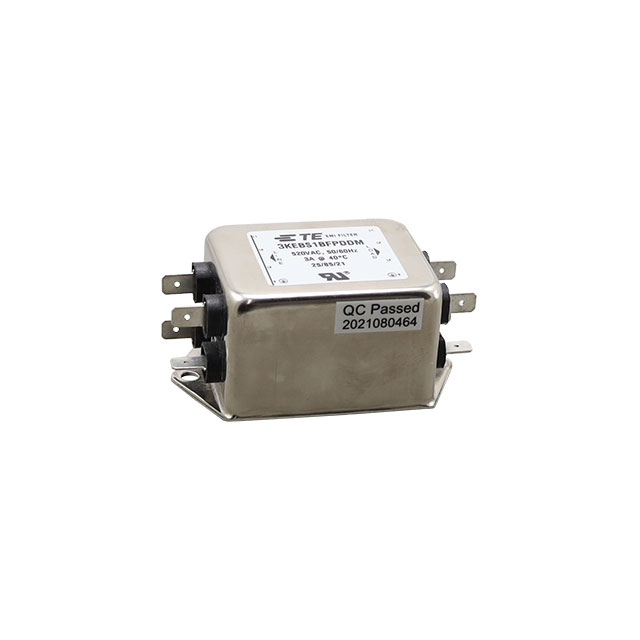

The TE Connectivity Corcom Filters 3KEBS1BFPDDM is a three-phase power line filter designed for general-purpose applications. It features a single-stage filtering configuration with a rated current of 3 A and voltage ratings of 440 VAC or 520 VAC. The component utilizes DIN rail mounting for installation and incorporates low leakage current characteristics.

Feature Summary

• Provides three-phase EMI/EMC noise suppression
• Supports DIN rail mounting for secure integration
• Features low leakage current design

Applications

• General-purpose industrial equipment
• Three-phase power distribution systems

Procurement Notes

Verify the specific voltage rating requirement (440 VAC vs. 520 VAC) against the application datasheet to ensure compatibility. Confirm that the 3 A current rating meets the load specifications. Ensure the mounting environment supports standard DIN rail installation methods.

Selection Notes

Select this component when a compact, single-stage solution for three-phase lines is required. Consider the low leakage current specification for sensitive environments. Verify that the DIN rail mounting style aligns with the enclosure design constraints.

Part Context

This part belongs to the Corcom Filters series by TE Connectivity, specializing in electromagnetic interference suppression. It is categorized as a power line filter intended for protecting downstream electronics from conducted noise on AC power lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
