Product Detailed Parameters
- Description：LINE FILTER 440VAC 3A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：3:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

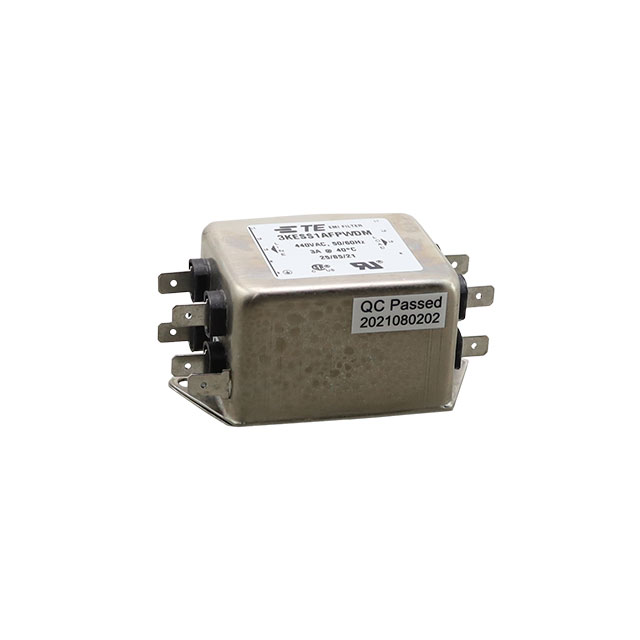

The 3KESS1AFPWDM is a three-phase (Wye) EMC/EMI power line filter module manufactured by TE Connectivity Corcom Filters. It is designed for general-purpose applications with a rated voltage of 440 VAC and a current capacity of 3 A. The unit operates at frequencies between 50 Hz and 60 Hz and utilizes a single-stage filtering configuration. Installation is facilitated via DIN rail mounting, and electrical connections are established using quick connect terminals.
Feature Summary
- Provides EMI/RFI suppression for three-phase Wye systems
- Supports DIN rail mounting for secure enclosure integration
- Utilizes quick connect terminal interfaces for simplified wiring
Applications
- Industrial machinery power distribution
- General-purpose electronic equipment protection
- Three-phase control panel installations
Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm the three-phase Wye configuration and 440V rating. Ensure compatibility with existing DIN rail standards and quick connect terminal specifications before procurement. Cross-reference datasheets for any recent product change notices or obsolescence alerts.
Selection Notes
Select this component when three-phase noise suppression is required for loads up to 3 A at 440 VAC. Confirm that the single-stage attenuation meets system EMC requirements. Verify that the physical dimensions accommodate the available DIN rail space and that the quick connect terminals match the wire gauge and connector types used in the assembly.
Part Context
This module belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference mitigation solutions. The product line includes various configurations for different phase arrangements and mounting styles, catering to industrial and commercial power integrity needs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation for direct replacements or updated series equivalents.
