3KESS1BFPW

Overview

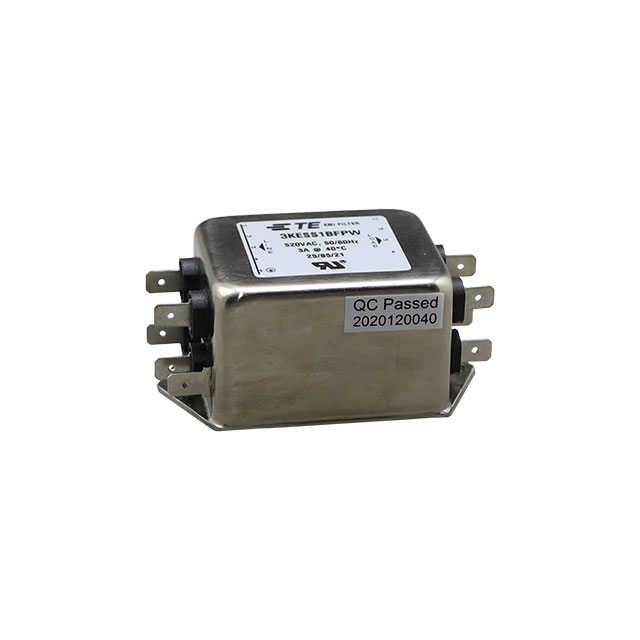

The 3KESS1BFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom Filters. It features a single-stage design rated for 520 VAC and 3 A current. The unit utilizes Faston terminals for electrical connection and supports chassis mounting. Designed for operation at 50 Hz, it provides electromagnetic interference suppression for industrial power systems.

Feature Summary

• Three-phase EMI/EMC filtering capability
• Single-stage attenuation architecture
• Faston terminal connectivity
• Chassis mount installation style

Applications

• Industrial power distribution units
• Electromagnetic compatibility compliance in machinery
• Power supply input stages for three-phase equipment

Procurement Notes

Verify the exact current rating against official datasheets, as conflicting data exists between 3A and 6A sources. Confirm terminal type and voltage ratings match system requirements before procurement. Check manufacturer lifecycle status to ensure long-term availability.

Selection Notes

Select this component for applications requiring three-phase filtering with low current demands. Ensure the chassis mounting footprint and Faston terminal spacing align with the enclosure design. Verify that the 520VAC rating meets the specific network voltage requirements of the target application.

Part Context

This part belongs to the KES series of power line filters from TE Connectivity Corcom. The series offers various current ratings and terminal configurations for three-phase applications. The 3KESS1BFPW represents the lower current end of the spectrum within this product family.

Replacement Considerations

Consult official substitution guides for equivalent three-phase filters. Verify that any replacement matches the 520VAC rating, 3A current capacity, and Faston terminal interface to maintain system compatibility.
