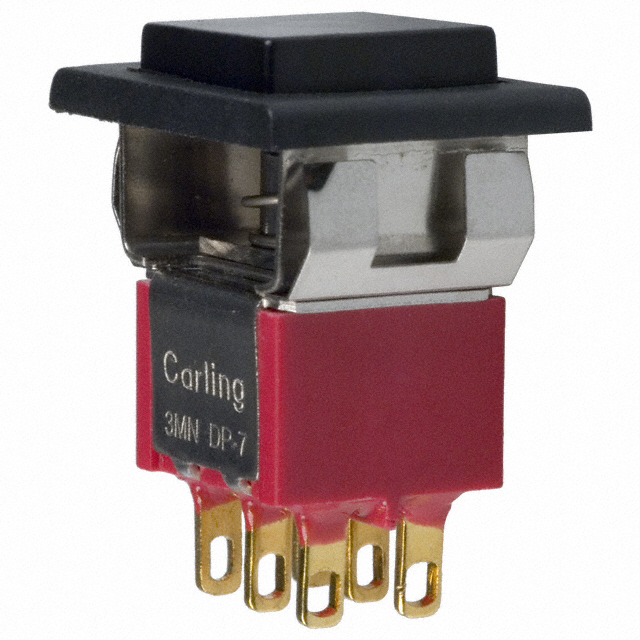

Pushbutton Switches 3MN-DP7-AP2/22-M1RE product image

3MN-DP7-AP2/22-M1RE

Description：SWITCH PUSH DPDT 0.4VA 20V
Series：3MN
Mfr：Carling Technologies
Package：Bulk

SKU:aefb1cf790a9 Category: Pushbutton Switches Brand: Carling Technologies

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3MN-DP7-AP2/22-M1RE is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Carling Technologies. Its product description is SWITCH PUSH DPDT 0.4VA 20V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for 3MN-DP7-AP2/22-M1RE

Description：SWITCH PUSH DPDT 0.4VA 20V
Series：3MN
Mfr：Carling Technologies
Package：Bulk
Mounting Type：Panel Mount, Snap-In
Type：Standard
Circuit：DPDT
Switch Function：On-Mom
Current Rating (Amps)：0.4VA (AC/DC)
Actuator Type：Square, Button
Actuator Marking：No Marking
Color - Actuator/Cap：Black
Illumination Type, Color：-
Illumination Voltage (Nominal)：-
Termination Style：Solder Lug
Ingress Protection：-
Features：-
Panel Cutout Dimensions：Rectangular - 15.24mm x 12.70mm
Operating Temperature：-30°C ~ 85°C
Voltage Rating - DC：20 V
Voltage Rating - AC：20 V

Pushbutton Switches datasheet and documents for 3MN-DP7-AP2/22-M1RE

3MN-DP7-AP2/22-M1RE
