Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A CHASS MNT
- Series：MV
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

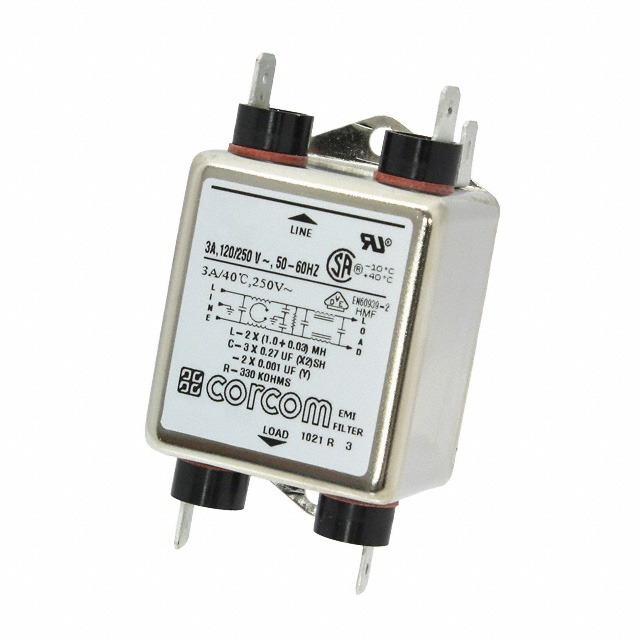

The TE Connectivity Corcom 3MV1 is a single-phase EMC/RFI power line filter designed for medical and general industrial applications. It features a current rating of 3A and a voltage rating of 250VAC, suitable for 50Hz and 60Hz systems. The unit utilizes quick connect (FASTON) terminations with .250" output terminals and supports flange mounting. Maximum leakage current is specified at 70mA at 120VAC 60Hz.
Feature Summary
- Multi-purpose design certified for medical use
- Two-stage EMI/RFI suppression architecture
- Flange mount construction for secure installation
Applications
- Medical equipment power input stages
- Industrial control panels requiring EMI suppression
- Facility filters in sensitive electronic environments
Procurement Notes
Verify the specific datasheet version to confirm compliance with current medical safety standards such as IEC 60601-1-11. Ensure termination compatibility with existing PCB or wire harness layouts before ordering. Cross-reference part numbers carefully as suffixes may indicate packaging or minor mechanical variations that do not alter electrical function.
Selection Notes
Select this component when a compact, high-performance flanged filter is required for single-phase AC lines up to 3A. Consider the low leakage current specification if patient-connected applications are involved. Verify that the FASTON terminal style matches the available connection infrastructure in the target enclosure design.
Part Context
This component belongs to the Corcom MV Series of single-phase power line filters produced by TE Connectivity. The series offers various current ratings including 3A, 6A, 10A, and 20A options. These filters are engineered to control EMI emissions and susceptibility across diverse industrial and medical applications.
Replacement Considerations
Consult official substitution guides for equivalent performance. Generic cross-references may not match the specific leakage current or medical certification requirements of the original part number.
FAQ
Is the 3MV1 suitable for medical applications?
Yes, it is designated as a multi-purpose medical filter.
What is the maximum leakage current?
The maximum leakage current is 70mA at 120VAC 60Hz.
