3QHTF21-161.044-PD

$28.04

Description：161.044 MHz XO 3.3V 2.0X1.6MM PD
Series：3QHTF21
Mfr：Mercury Electronics Ind. Co. Ltd
Package：Strip

SKU:f0aa5f1f7d59 Category: Oscillators Brand: Mercury Electronics Ind. Co. Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3QHTF21-161.044-PD is listed in the Oscillators range at ChipApex. The manufacturer field lists Mercury Electronics Ind. Co. Ltd. Its product description is 161.044 MHz XO 3.3V 2.0X1.6MM PD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for 3QHTF21-161.044-PD

Description：161.044 MHz XO 3.3V 2.0X1.6MM PD
Series：3QHTF21
Mfr：Mercury Electronics Ind. Co. Ltd
Package：Strip
Base Resonator：Crystal
Type：XO (Standard)
Frequency：161.044 MHz
Function：Standby (Power Down)
Output：LVCMOS
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：29mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)：0.031" (0.80mm)
Supplier Device Package：-

Oscillators datasheet and documents for 3QHTF21-161.044-PD

3QHTF21-161.044-PD

Oscillators Overview

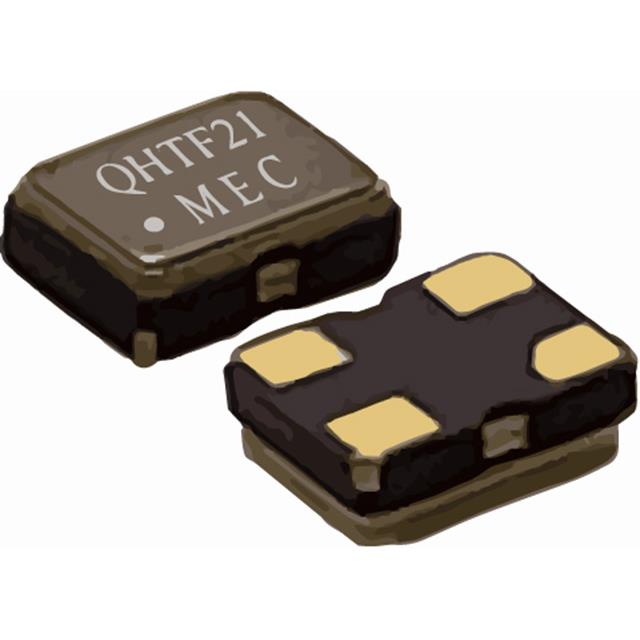

The 3QHTF21-161.044-PD is a crystal oscillator manufactured by Mercury Electronics Ind. Co. Ltd. It operates at a frequency of 161.044 MHz and utilizes LVCMOS output logic. The device requires a 3.3V supply voltage and features a standby or power-down function. It is housed in a 4-SMD, No Lead package with dimensions of 2.0 x 1.6 mm.

Oscillators Feature Summary

Supports low-voltage CMOS output signaling
Includes standby capability for power management

Oscillators Applications

General clock signal generation
Digital circuit timing reference

Oscillators Procurement Notes

Verify the specific datasheet provided by Mercury Electronic Ind., Co., Ltd. to confirm all electrical parameters and mechanical tolerances before integration. Ensure compatibility with the required operating temperature range and load conditions specified in the official documentation.

Oscillators Selection Notes

Select this component when a precise 161.044 MHz clock source is required in a compact surface-mount form factor. Consider the LVCMOS interface requirements and 3.3V supply constraints during system design to ensure proper signal integrity and power consumption levels.

Oscillators Part Context

Mercury Electronics Ind. Co. Ltd has a history of manufacturing quartz crystals and frequency control products since 1973. This oscillator is part of their standard XO lineup, designed for applications requiring stable frequency generation in small packages.
