3QHTF57-14.986854-PD

Oscillators Overview

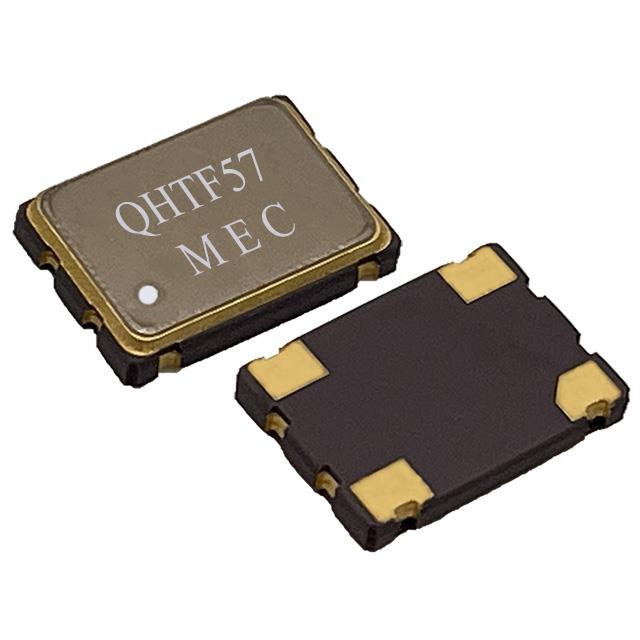

The Mercury 3QHTF57-14.986854-PD is a standard LVCMOS crystal oscillator operating at 14.986854 MHz. It utilizes a 3.3V supply voltage and features a power-down mode for standby control. The device is housed in a compact 4-SMD, No Lead package with dimensions of 7.0mm x 5.0mm. It offers a frequency stability of ±50ppm and supports an operating temperature range suitable for industrial applications.

Oscillators Feature Summary

• Supports LVCMOS output logic levels
• Includes power-down functionality for energy management
• Compact surface-mount design

Oscillators Applications

• General-purpose clock generation
• Digital signal processing systems
• Communication equipment timing

Oscillators Procurement Notes

Verify the specific suffix 'PD' confirms the power-down feature against the manufacturer's official datasheet. Ensure the operating temperature range meets your environmental requirements. Confirm the package footprint matches your PCB layout constraints before finalizing procurement.

Oscillators Selection Notes

Select this component when a precise 14.986854 MHz reference is required with low power consumption capabilities. The LVCMOS interface ensures compatibility with standard digital logic families. Consider the ±50ppm stability for general timing applications where high precision is not critical.

Oscillators Part Context

This part belongs to the Mercury 3QHTF57 series of surface-mount oscillators. The series provides various frequencies with consistent electrical characteristics. The 'PD' suffix indicates the inclusion of a control pin for enabling or disabling the oscillator output.

Oscillators Replacement Considerations

Direct substitutes include other 3QHTF57 variants with identical pinouts and electrical specs but different frequencies. Cross-reference with other manufacturers offering 4-SMD LVCMOS oscillators at 14.986854 MHz with similar dimensions.
