3SMBJ5952BQ-TP

Single Zener Diodes Overview

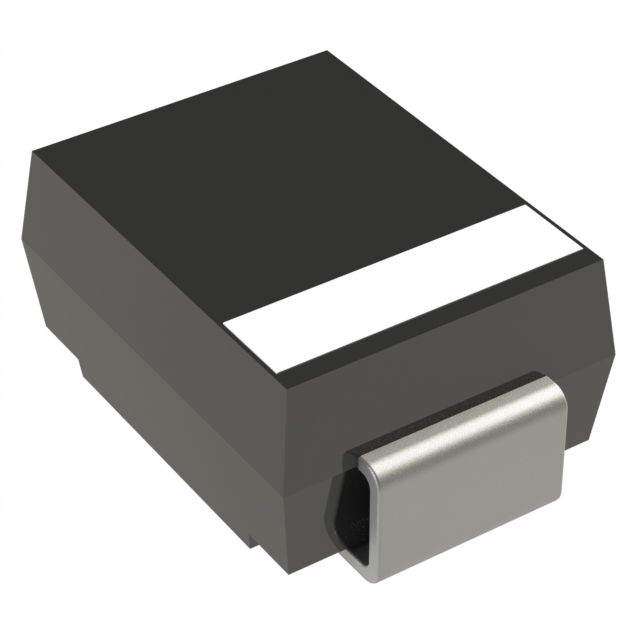

The 3SMBJ5952BQ-TP is a Zener diode manufactured by Micro Commercial Components (MCC). It features a nominal Zener voltage of 130 V with a tolerance of ±5%. The device has a maximum power dissipation of 1.5 W and operates within a junction temperature range of -55°C to 150°C. It utilizes the DO-214AA (SMB) surface-mount package and holds AEC-Q101 qualification for automotive applications.

Single Zener Diodes Feature Summary

• AEC-Q101 qualified for automotive reliability standards
• Surface-mount SMB (DO-214AA) package design
• High thermal resilience up to 150°C junction temperature

Single Zener Diodes Applications

• Automotive electronic circuit protection
• Voltage regulation in vehicle dashboards
• Transient voltage suppression in automotive modules

Single Zener Diodes Procurement Notes

Verify current availability status directly with authorized distributors, as product lifecycle stages may affect supply. Confirm that the specific suffix 'Q' denotes the required automotive grade and halogen-free compliance before finalizing procurement orders. Ensure compatibility with existing PCB footprints for the SMB package.

Single Zener Diodes Selection Notes

Select this component when an automotive-grade Zener diode with 130 V regulation is required in an SMB package. The AEC-Q101 certification ensures suitability for harsh automotive environments. Compare specifications against standard commercial grades if automotive qualification is not strictly necessary for the application.

Single Zener Diodes Part Context

This part belongs to the 3SMBJ series of Zener diodes from MCC. The series offers various voltage options in the SMB surface-mount package. The 'Q' suffix typically indicates automotive qualification and specific material compliance, distinguishing it from standard commercial variants within the same voltage family.

Single Zener Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-references with other manufacturers offering AEC-Q101 qualified 130 V Zener diodes in the SMB package.
