3VAQ8F

Overview

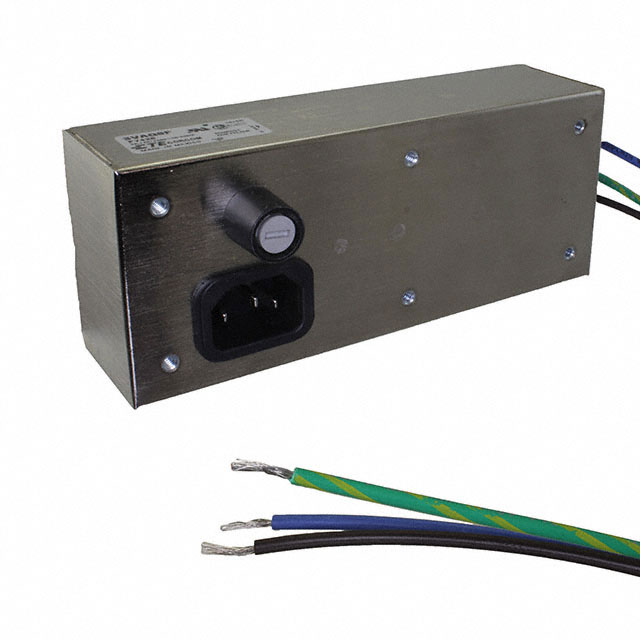

The TE Connectivity Corcom Filters 3VAQ8F is a single-phase EMC/EMI power line filter rated for 3 A at 250 VAC. Operating at 50/60 Hz, it features a three-stage configuration for enhanced noise suppression across the 10 kHz to 1 GHz frequency range. The unit utilizes an IEC 320-C14 input connector with wire lead outputs and supports chassis mounting. It complies with RoHS standards.

Feature Summary

• Three-stage filtering architecture designed for high-frequency RFI noise suppression from 10 kHz to 1 GHz
• Integrated IEC 320-C14 inlet connector combined with wire lead output terminals
• Chassis mount design suitable for secure installation in electronic enclosures

Applications

• General-purpose electronic equipment requiring EMI/RFI mitigation
• Power entry modules for devices sensitive to high-frequency interference
• Industrial control systems needing robust single-phase line filtering

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the specific revision matches project requirements, as manufacturing locations may vary. Ensure compliance with local regulatory standards such as RoHS and REACH before integration into final assemblies.

Selection Notes

Select this model when three-stage attenuation is required for frequencies up to 1 GHz. The combination of an IEC 320-C14 inlet and wire leads offers flexible wiring options compared to panel-mount-only variants. Ensure the chassis provides adequate space for the specified mounting style and thermal conditions.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specializing in power line filter modules. The series focuses on providing reliable EMI/RFI protection for single-phase AC applications, ensuring signal integrity and regulatory compliance in various electronic environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative models from different manufacturers.
