3VB1

Overview

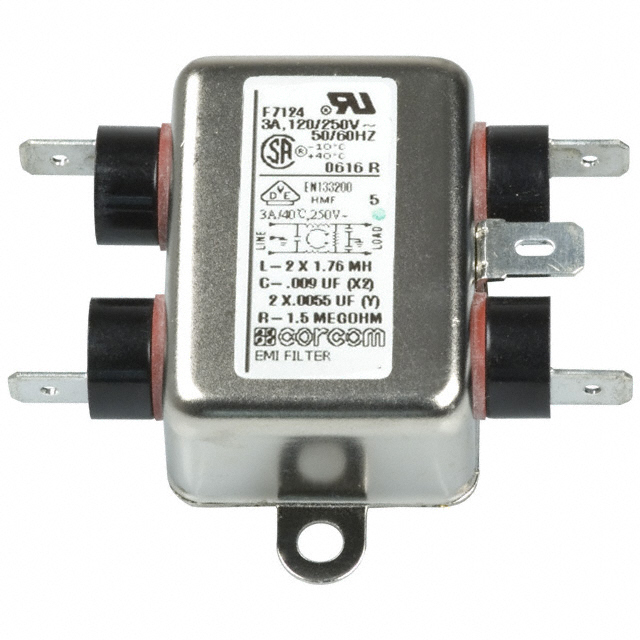

The TE Connectivity Corcom Filters 3VB1 is a single-phase RFI power line filter designed for low current applications with high impedance loads. It features a 3A current rating and operates at 250VAC, 50/60Hz. The component utilizes quick connect terminals for circuit attachment and employs a chassis mount flanged installation style. This B series unit provides general-purpose noise suppression in a compact form factor suitable for commercial environments.

Feature Summary

• Provides general-purpose RFI filtering for low current applications
• Engineered specifically for high impedance loads
• Features a compact B series design for space-constrained installations

Applications

• Low current electronic equipment requiring EMI mitigation
• High impedance load circuits
• Commercial devices needing general-purpose noise suppression

Procurement Notes

Verify the specific terminal configuration and mounting dimensions against your PCB or chassis requirements before ordering. Confirm that the 3A current rating aligns with your system's maximum operational draw. Ensure the quick connect interface matches your wiring harness specifications to guarantee proper electrical contact and mechanical stability during assembly.

Selection Notes

Select this component when your application demands a compact, general-purpose RFI filter for low current scenarios. It is particularly suitable for systems with high impedance loads where standard filters may not perform optimally. Consider its flanged chassis mount style if panel or chassis integration is required rather than PCB-only mounting.

Part Context

This part belongs to the TE Connectivity Corcom Filters B series, which focuses on providing reliable electromagnetic interference suppression in a small footprint. The series is widely used in commercial electronics where space efficiency and basic noise reduction are primary design constraints without requiring complex multi-stage filtering solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
