3VR7M

Overview

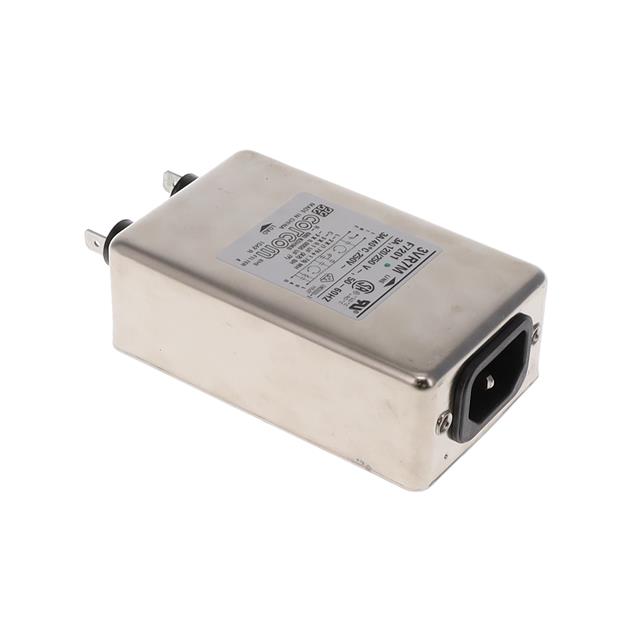

The TE Connectivity Corcom Filters 3VR7M is a single-phase EMC/EMI power line filter module rated for 3 A at AC 250V and 50/60Hz. It features a two-stage configuration with quick connect terminals and an integrated IEC 320-C14 inlet. Designed for chassis mounting, this component operates within a temperature range of -10°C to 40°C. The unit holds CSA, UR, and VDE certifications but does not comply with RoHS specifications.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Integrated IEC 320-C14 power inlet
• Chassis mount installation design

Applications

• General purpose electronic equipment
• Industrial control systems
• Medical devices requiring certified filtration

Procurement Notes

Verify RoHS compliance status as the 3VR7M is explicitly non-compliant. Confirm that the required current rating of 3A aligns with system demands. Ensure chassis mounting provisions match the physical dimensions. Check for specific UR or VDE certification requirements in target markets before ordering.

Selection Notes

Select this model when a two-stage filter with an integrated inlet is required for 3A applications. Consider the operating temperature range of -10°C to 40°C against environmental conditions. Verify that quick connect terminals suit the wiring method. Note the absence of RoHS compliance if used in restricted jurisdictions.

Part Context

Part of the TE Connectivity Corcom R series power line filters. This series provides compact EMI/RFI solutions for AC power lines. The 3VR7M integrates filtering and connection functions into a single chassis-mountable unit, simplifying assembly compared to discrete components.

Replacement Considerations

TE Connectivity Schaffner FN9246-3-06 is listed as a similar replacement option.
