Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A CHASS MNT
- Series：SK
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：7.06mH
Download product information
Overview

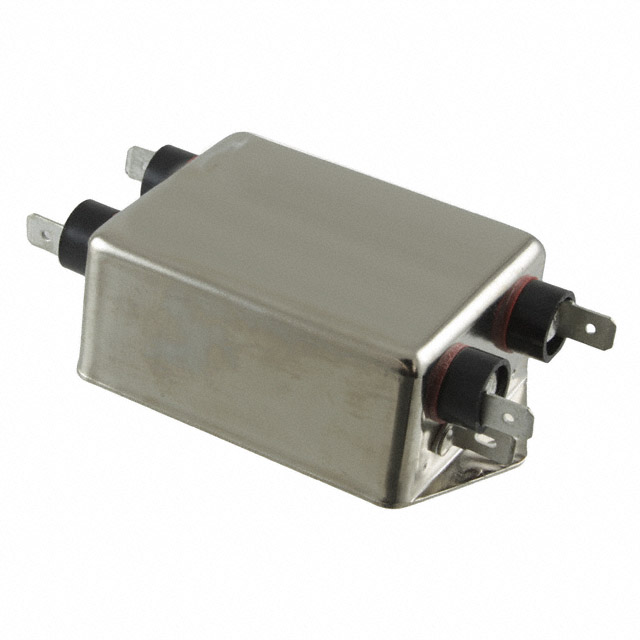

The 3VSK1 is a single-phase EMI/RFI power line filter manufactured by TE Connectivity Corcom. It supports a voltage rating of 250 VAC and a current capacity of 3 A at operating frequencies of 50 Hz and 60 Hz. The unit features quick connect terminals for circuit attachment and utilizes a flange mount installation style. Certified by UL, CSA, and VDE, the component exhibits a leakage current of 700 uA.
Feature Summary
- Provides electromagnetic interference suppression on AC power lines
- Utilizes quick connect terminal interface for electrical attachment
- Designed for chassis or panel mounting via flange configuration
Applications
- Industrial equipment requiring EMI reduction
- Medical devices needing filtered power inputs
- Commercial electronic systems
Procurement Notes
Verify the manufacturer part number 3VSK1 against official TE Connectivity documentation to confirm specifications. Ensure compatibility with 250 VAC systems and 3 A load requirements. Confirm that quick connect terminals match existing wiring harnesses. Validate that flange mounting dimensions fit the intended enclosure space before procurement.
Selection Notes
Select this component when a single-phase filter rated for 3 A is required. Ensure the application operates within the 50 Hz to 60 Hz frequency range. Verify that the 250 VAC rating meets system voltage needs. Confirm that quick connect terminals are suitable for the available wiring method and that flange mounting is feasible in the design.
Part Context
This component belongs to the SK series of power line filters from TE Connectivity Corcom. The series covers ratings from 3 to 10 Amps. These filters are designed for general-purpose EMI/RFI suppression in AC power applications. The product adheres to international safety standards including UL, CSA, and VDE certifications.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without specific manufacturer confirmation.
