3VV1

Overview

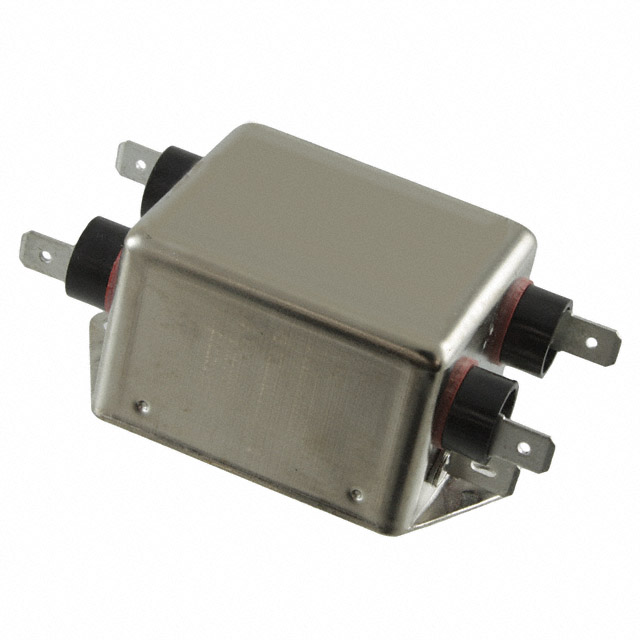

The TE Connectivity Corcom Filters 3VV1 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 3 A and operates at AC voltages of 125 VAC or 250 VAC with a frequency of 50/60 Hz. The component features a two-stage configuration and utilizes quick connect terminals for circuit attachment.

Feature Summary

• Provides EMI/RFI suppression through a two-stage filtering architecture
• Supports dual voltage ratings for versatile power system integration
• Facilitates rapid electrical connection via quick connect terminal style

Applications

• General purpose emission control in electronic equipment
• Power line filtering for industrial machinery
• Electromagnetic compatibility enhancement in commercial devices

Procurement Notes

Verify the specific voltage rating requirement, as the part supports both 125 VAC and 250 VAC. Confirm that the chassis mounting footprint and quick connect terminal dimensions align with the target assembly design. Ensure the application environment remains within the specified operating temperature range to maintain performance integrity.

Selection Notes

Select this model when a compact, two-stage solution is required for single-phase applications. It is suitable for systems needing robust EMI suppression without complex wiring. Verify that the 3 A current capacity meets the load requirements and that the chassis mount style fits the enclosure constraints.

Part Context

This component belongs to the Corcom Filters series, which specializes in power line RFI filters. The 3VV1 variant is engineered for general-purpose emission control, offering a balance of filtering performance and ease of installation for standard AC power lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
