4-103185-0-04

Headers, Male Pins Overview

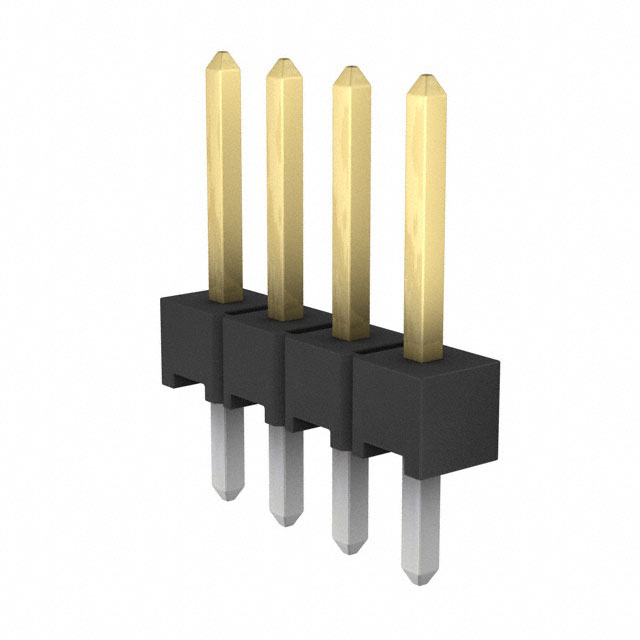

The 4-103185-0-04 is a vertical pin header connector from the AMPMODU Mod II series, manufactured by TE Connectivity. It features a 4-position configuration with a 2.54mm (0.100 inch) mating pitch and straight mounting orientation. Designed for through-hole termination, this single-row male connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The housing is constructed from black thermoplastic material rated UL94 V-0 for flammability. It operates within a temperature range of -65°C to 105°C and supports a current rating of 3A.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Gold-plated phosphor bronze contacts for durability
• UL94 V-0 rated thermoplastic insulation
• Through-hole solder termination style

Headers, Male Pins Applications

• General electronic circuit boards
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix '-0-04' against official TE Connectivity documentation to confirm the exact contact finish and packaging details. Ensure compatibility with mating receptacles in terms of pitch and row count. Confirm that the through-hole footprint matches the target PCB layout requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertical header is required for 4-wire connections. The 2.54mm pitch is standard for general-purpose applications. Consider the 3A current rating and operating temperature range to ensure suitability for the specific environmental conditions of the end product.

Headers, Male Pins Part Context

This part belongs to the AMPMODU Mod II family, a widely used line of board-level connectors known for their reliability and standardized dimensions. The series offers various configurations in terms of position count and orientation, making it a versatile choice for diverse electronic assembly needs across multiple industries.

Headers, Male Pins Replacement Considerations

Compatible alternatives include other 4-position, 2.54mm pitch vertical headers from the same or competing manufacturers. Verify mechanical dimensions, contact material specifications, and thermal ratings to ensure functional equivalence without redesigning the host PCB.
