4-103325-0-01

Headers, Male Pins Overview

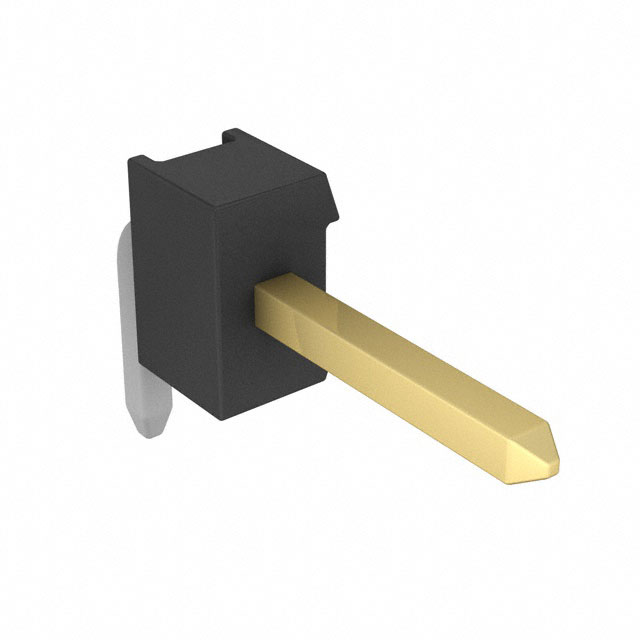

The TE Connectivity AMP Connectors part number 4-103325-0-01 is a single-position header connector from the AMPMODU Mod II series. It features a right-angle design with a 0.100 inch (2.54mm) pitch, intended for board-to-board or cable applications. The component utilizes through-hole termination and includes black thermoplastic insulation rated UL94 V-0. It supports a current rating of 3A and operates within a temperature range of -65°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle pin header configuration for compact PCB mounting
• Single position contact arrangement with 0.100 inch spacing
• Through-hole solder termination method
• Black thermoplastic insulation housing

Headers, Male Pins Applications

• Board-to-board interconnection
• Cable-to-board connection
• Compact electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required right-angle orientation and single-position count. Confirm that the base product number corresponds to the AMPMODU Mod II series specifications. Ensure compatibility with standard 0.100 inch pitch mating connectors. Check for any specific packaging requirements if bulk procurement is necessary.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle single-pin connection is required. Consider the 3A current rating and -65°C to +105°C operating range for environmental suitability. Verify that the through-hole footprint aligns with the target PCB layout. Ensure the mating connector matches the 0.100 inch pitch specification.

Headers, Male Pins Part Context

This connector belongs to the AMPMODU Mod II family, a widely used line of rectangular connectors known for reliability in various industrial and commercial applications. The series offers multiple configurations including straight and right-angle headers, sockets, and various pin counts. This specific variant provides a minimal single-position solution within that established ecosystem.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other single-position right-angle headers with 0.100 inch pitch from the same manufacturer. Cross-reference with generic 0.100 inch pitch header components if brand-specific sourcing is unavailable. Ensure mechanical dimensions and electrical ratings match the original design requirements.
