4-1609037-0

Overview

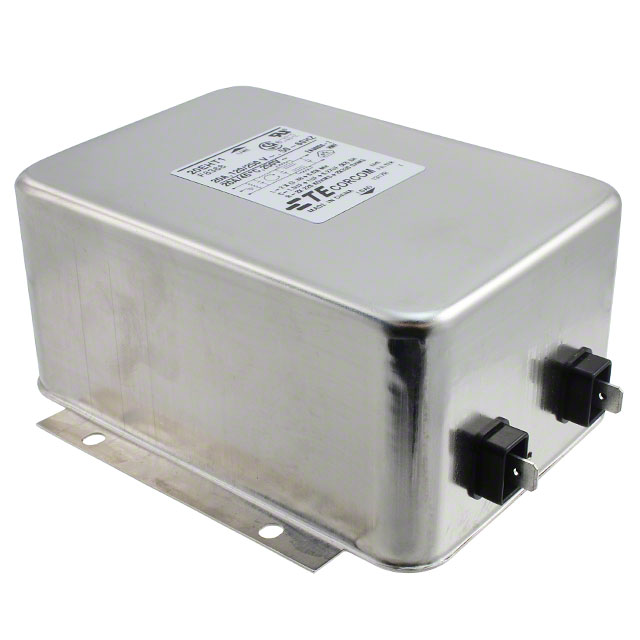

The TE Connectivity Corcom Filters part number 4-1609037-0 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a two-stage configuration to provide effective noise suppression in electrical circuits. The component is rated for an AC voltage of 250V and supports a continuous current of 20A at operating frequencies of 50Hz and 60Hz. Termination is achieved via quick connect terminals, facilitating integration into various industrial and commercial power systems requiring robust interference mitigation.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Designed for direct chassis mounting applications
• Utilizes quick connect terminal style for efficient circuit integration

Applications

• Industrial machinery power conditioning
• Commercial equipment EMI mitigation
• General purpose single-phase power line filtering

Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to procurement, as manufacturing updates may occur. Confirm that the quick connect terminal dimensions match the target PCB or wiring harness specifications. Ensure the chassis mounting footprint aligns with the enclosure design constraints. Cross-reference the 20A rating against peak load requirements to prevent thermal issues during operation.

Selection Notes

Select this component when a single-phase solution with a 20A capacity is required for chassis-mounted installations. The two-stage design offers superior attenuation compared to single-stage alternatives, making it suitable for sensitive electronic environments. Ensure the operating temperature range accommodates the specific environmental conditions of the installation site.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial applications. The 4-1609037-0 designation identifies a specific variant within the broader portfolio of EMI/RFI suppression devices offered by the manufacturer, focusing on high-current single-phase requirements.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers.
