4-1609037-1

Overview

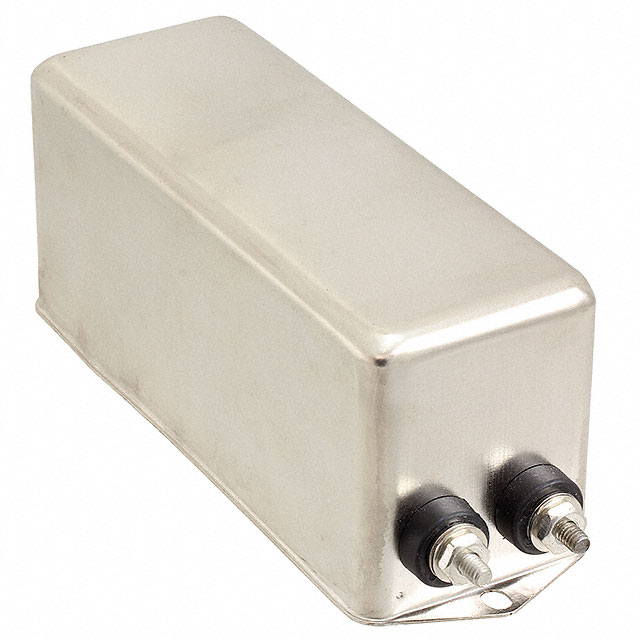

The TE Connectivity Corcom Filters 4-1609037-1 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with threaded post terminals (8-32). The component is rated for 20 A current and 250 VAC voltage at 50/60 Hz operating frequencies.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Threaded post terminal design for secure mechanical connection
• Chassis mount installation style

Applications

• General industrial equipment power conditioning
• Commercial machinery EMI mitigation
• Power supply input filtering

Procurement Notes

Verify the specific terminal thread size and pitch against the official datasheet to ensure compatibility with existing panel hardware. Confirm that the two-stage topology meets the required attenuation specifications for the target application environment before finalizing procurement.

Selection Notes

Select this model when high current capacity of 20 A is required alongside robust mechanical termination via threaded posts. Ensure the chassis mounting footprint aligns with the enclosure design constraints and that the two-stage performance level satisfies the electromagnetic interference requirements.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial applications. The product line focuses on providing reliable EMI/RFI suppression solutions for various power distribution needs.

Replacement Considerations

The part number 4-1609037-0 is identified as a similar substitute option within the same manufacturer portfolio.
