4-1609037-2

Overview

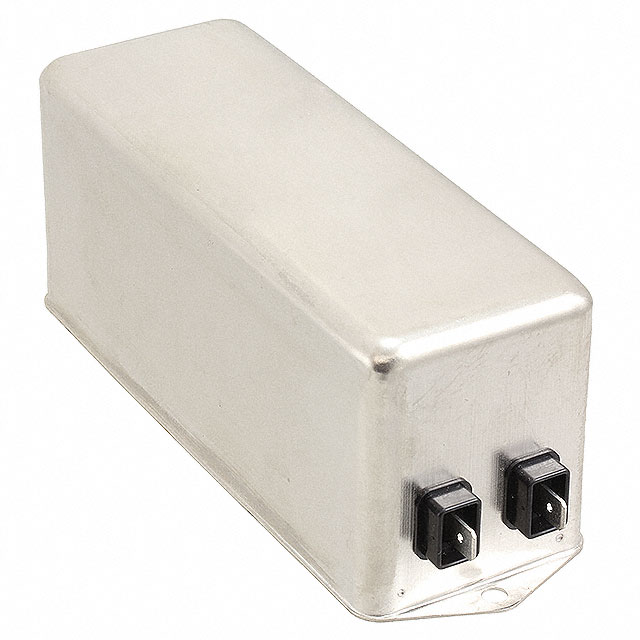

The TE Connectivity Corcom Filters model 4-1609037-2 is a single-phase EMC/EMI line filter designed for AC power lines. It operates at 250VAC and supports a current rating of 20A at 50/60Hz. The component features a two-stage configuration with quick connect termination style. It is intended for chassis mounting applications.

Feature Summary

• Single-phase EMC/EMI line filter design
• Two-stage filtering configuration
• Quick connect termination style

Applications

• General purpose electronic equipment noise reduction

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with specific system requirements. Confirm that the chassis mounting method and quick connect terminals align with the target assembly specifications before procurement.

Selection Notes

Select this component when a single-phase, 20A rated EMI filter with quick connect terminals is required. Ensure the application environment falls within the standard operating temperature range and that chassis mounting is feasible for the enclosure design.

Part Context

This component belongs to the TE Connectivity Corcom Filters HQ series. It is categorized as a power line filter module designed for commercial and industrial applications requiring electromagnetic interference suppression on AC power inputs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
