4-1609037-3

Overview

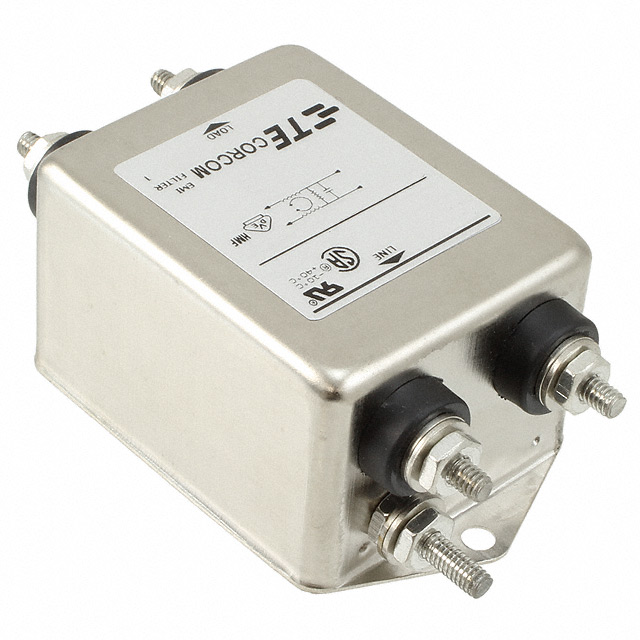

The TE Connectivity Corcom Filters model 4-1609037-3 is a single-phase EMC/EMI power line filter designed for commercial applications. It features a threaded post termination style with an 8-32 thread specification, facilitating secure mechanical and electrical connections. The component is rated for a continuous current of 20 A at voltages up to 250 VAC, operating effectively at standard frequencies of 50 Hz and 60 Hz. This single-stage configuration provides essential noise suppression capabilities while maintaining robust performance under specified electrical loads.

Feature Summary

• Single-phase EMI/RFI filtering capability
• Threaded post termination design
• Commercial grade construction

Applications

• General electronic equipment noise suppression
• Power distribution units requiring single-phase filtering
• Industrial control systems

Procurement Notes

Verify the specific application requirements against the official datasheet before procurement. Confirm that the 8-32 threaded post termination matches the mating hardware in your assembly. Ensure the 20 A current rating and 250 VAC voltage limit are sufficient for your circuit's operational parameters. Check for any specific regulatory compliance needs relevant to your region.

Selection Notes

Select this component when a single-stage, single-phase filter is required for currents up to 20 A. The threaded post termination is suitable for applications where screw-down connections are preferred over faston tabs or wire leads. Consider the physical dimensions and mounting constraints associated with the bulkhead or panel mount style typical of this series.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, which specializes in power line filters for various industrial and commercial uses. The Corcom brand is recognized for providing reliable EMI/RFI suppression solutions. This specific model represents a standard offering within their single-phase filter portfolio, focusing on durability and effective noise reduction.

Replacement Considerations

Consult official substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and termination type to ensure compatibility. Verify that any substitute part meets the same regulatory certifications and physical mounting requirements.
