4-1609090-1

Overview

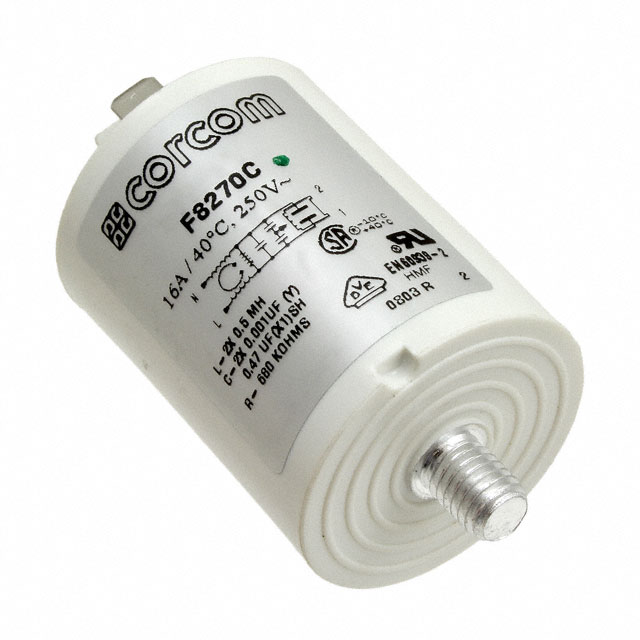

The TE Connectivity Corcom Filters model 4-1609090-1 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a rated current of 16 A and operates at 250 VAC within the 50/60 Hz frequency range. The unit utilizes a single-stage configuration with quick connect termination style on threaded M8 posts (0.250 inch Faston). This component serves as an industrial-grade solution for noise suppression in power distribution systems.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Chassis mount installation with threaded post terminals
• Industrial grade EMC compliance

Applications

• Industrial machinery power conditioning
• Commercial equipment noise suppression
• General purpose AC power line filtering

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the single-stage configuration and 16 A rating align with the intended application's electrical specifications before procurement.

Selection Notes

Select this component when a single-phase, single-stage filter is required for chassis-mounted applications. Ensure the system voltage does not exceed 250 VAC and the continuous current load remains within the 16 A limit. Verify terminal compatibility with the M8 threaded posts.

Part Context

This component belongs to the Corcom WG series of single-phase filters manufactured by TE Connectivity. It is engineered for robust performance in industrial environments, providing effective electromagnetic interference reduction through its dedicated single-stage design and durable construction.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
