4-1609090-2

Overview

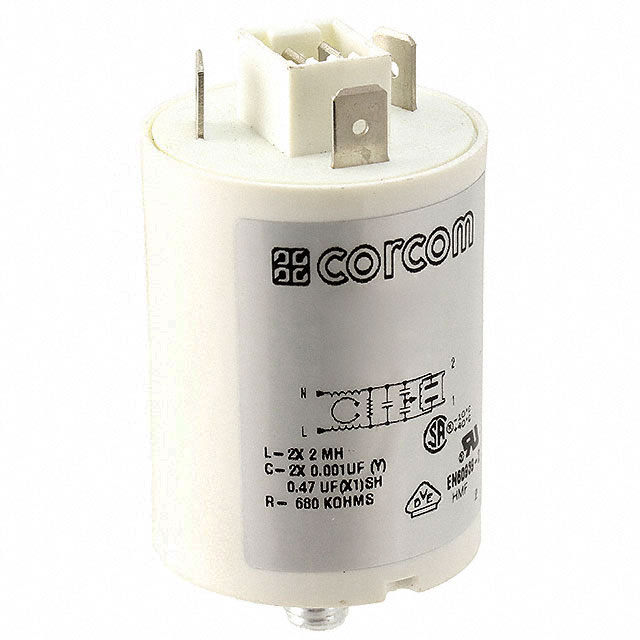

The TE Connectivity Corcom Filters model 4-1609090-2 is a single-phase EMI/RFI power line filter module designed for chassis mounting. It features a WG series configuration with a rated AC voltage of 250V and a continuous current capacity of 16A. The component operates at standard frequencies of 50Hz or 60Hz and utilizes quick-connect terminals for circuit integration. Certified by CSA, UL, and VDE agencies, it ensures compliance with international safety standards for commercial electronic equipment.

Feature Summary

• Provides effective attenuation of electromagnetic and radio frequency interference in single-phase power circuits
• Engineered for secure chassis mounting to maintain structural stability in industrial enclosures
• Facilitates rapid electrical connection through standardized quick-connect terminal interfaces

Applications

• Commercial electronic equipment requiring EMI suppression
• Industrial control systems utilizing single-phase power inputs
• General-purpose machinery needing certified power line filtering

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with your system requirements. Ensure that the chassis mounting dimensions and quick-connect terminal specifications align with your assembly design. Cross-reference certification marks such as CSA, UL, and VDE with local regulatory standards before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase filter with a 16A rating and 250VAC capability is required. Consider the chassis mounting style and quick-connect termination method during the design phase. Verify that the WG series characteristics meet the specific EMI/RFI suppression needs of the target application environment.

Part Context

This component belongs to the TE Connectivity Corcom Filters product line, specifically within the WG series. It is categorized as a power line filter module intended for commercial applications. The part is manufactured by TE Connectivity and is identified by the manufacturer part number 4-1609090-2.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
