Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：WG
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect, Threaded Post (M8)
- Inductance：2mH
Download product information
Overview

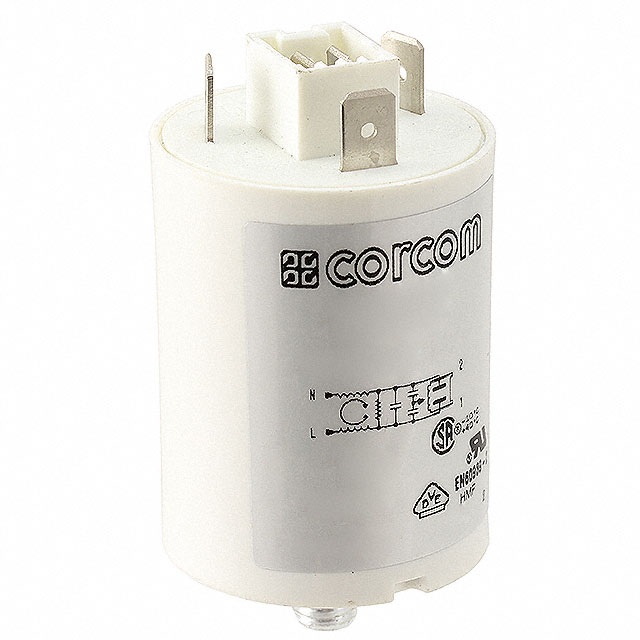

The TE Connectivity Corcom Filters model 4-1609090-3 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 16 A at 250 VAC and operates at frequencies of 50 Hz or 60 Hz. The unit features a single-stage configuration with quick connect terminals and M8 threaded posts for secure attachment. This component provides essential noise suppression for sensitive electronic equipment within the specified electrical parameters.
Feature Summary
- Provides single-stage EMI/RFI noise suppression for AC power lines
- Features quick connect terminals combined with M8 threaded posts for robust mechanical stability
- Designed for direct chassis mounting to facilitate integration into industrial enclosures
Applications
- Industrial control panels requiring noise reduction
- Medical equipment power supplies
- Automated manufacturing systems
Procurement Notes
Verify the specific terminal configuration, ensuring compatibility with both quick connect pins and M8 threaded post requirements. Confirm that the chassis mounting holes align with the design specifications. Check for updated compliance certifications such as UL, CSA, and VDE before finalizing procurement to ensure adherence to regional safety standards.
Selection Notes
Select this component when a single-phase filter with a 16 A rating is required. Ensure the application environment accommodates chassis mounting and utilizes M8 threaded posts for grounding or structural integrity. Verify that the operating voltage does not exceed 250 VAC and that the frequency matches standard 50/60 Hz operations.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial applications. The Corcom brand is recognized for providing reliable EMI/RFI suppression solutions across various voltage and current ratings, supporting diverse global certification requirements.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers without validating electrical and mechanical specifications against the original datasheet.
