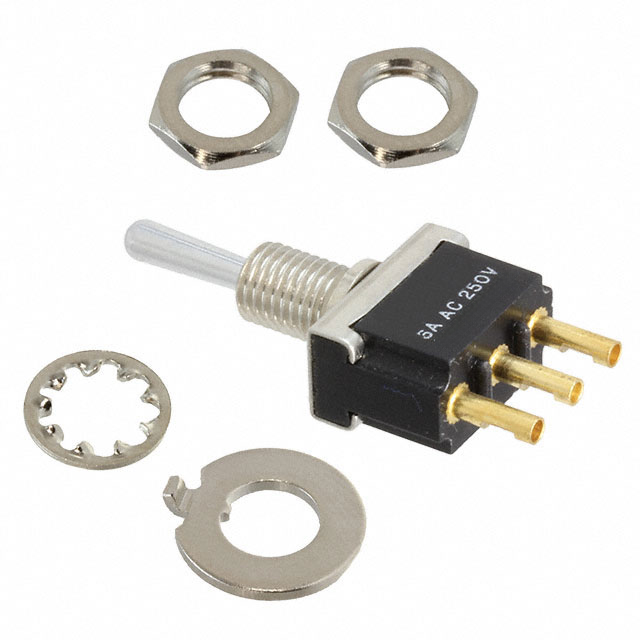

4-6437630-5

4-6437630-5 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH TOGGLE SP3T 6A 250V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for 4-6437630-5

• Description：SWITCH TOGGLE SP3T 6A 250V
• Series：F
• Mfr：TE Connectivity ALCOSWITCH Switches
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：SP3T
• Switch Function：On-On-On
• Current Rating (Amps)：6A (AC)
• Voltage Rating - AC：250 V
• Voltage Rating - DC：-
• Actuator Type：Standard Round
• Actuator Length：10.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 6.20mm Dia
• Bushing Thread：M6 x 0.75
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：Jumper needed to achieve triple throw
• Operating Temperature：-20°C ~ 70°C

Toggle Switches datasheet and documents for 4-6437630-5
