4-6609089-0

Overview

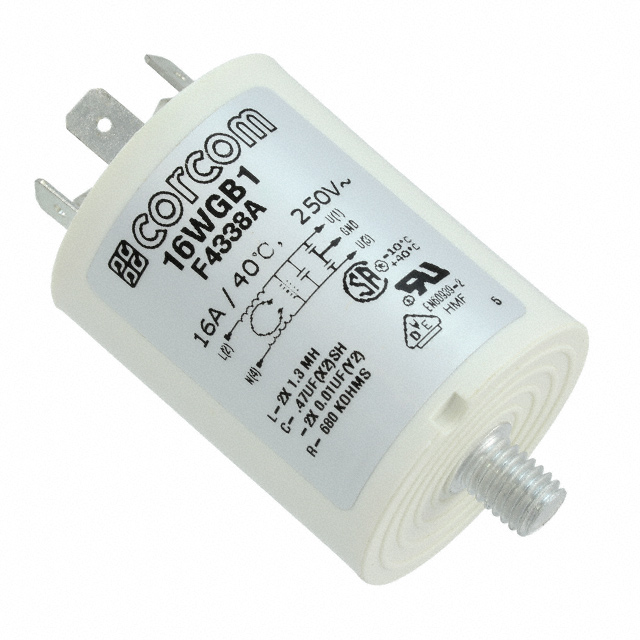

The TE Connectivity Corcom Filters model 4-6609089-0 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 16 A at 250 VAC with a frequency range of 50/60 Hz. The unit features a single-stage configuration and utilizes quick connect terminals with threaded posts (M8) for secure electrical interfacing.

Feature Summary

• Provides single-stage electromagnetic interference suppression
• Features quick connect termination with M8 threaded posts

Applications

• General industrial equipment power conditioning
• Commercial machinery noise reduction
• Single-phase AC power line filtering

Procurement Notes

Verify the specific terminal configuration, ensuring compatibility with M8 threaded post requirements. Confirm that the single-stage attenuation meets the system's EMI/RFI suppression needs. Check certification listings such as UL or CSA if required by the end application standards.

Selection Notes

Select this component when a 16 A capacity is required for single-phase applications. Ensure the chassis mounting style fits the enclosure design. Verify that the M8 threaded post interface aligns with the available circuit board or wiring harness connection points.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The product falls under the category of single-phase EMC/EMI line filters designed for robust performance in noisy environments.

Replacement Considerations

FN2080A-16-06
