4-6609089-1

Overview

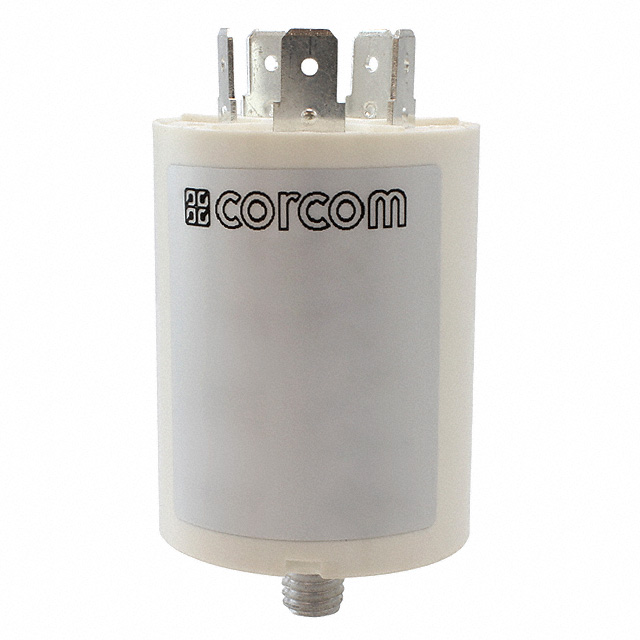

The TE Connectivity Corcom Filters model 4-6609089-1 is a chassis-mount power line filter module designed for AC mains applications. It operates at a rated voltage of 250VAC and supports a continuous current of 16A at 50/60Hz frequencies. The unit features an anti-interference design with specified capacitance values of 0.475µF for Cx and 20nF for Cy. This component is currently classified as obsolete in the manufacturer's product portfolio.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Engineered for direct chassis mounting to secure installation within equipment enclosures
• Integrates dual-stage filtering capability using specific X and Y capacitor configurations

Applications

• Industrial machinery power input stages
• Commercial electronic equipment chassis integration
• General-purpose AC power line noise reduction

Procurement Notes

Verify component obsolescence status before finalizing designs, as this part is no longer actively manufactured. Confirm that existing stock or surplus sources meet required quality standards. Ensure replacement strategies account for potential supply chain discontinuations. Validate that alternative components match the original electrical specifications and physical mounting dimensions for seamless integration into existing systems.

Selection Notes

Select this component only if legacy compatibility is strictly required due to its obsolete status. Evaluate equivalent active series from the manufacturer that maintain similar current ratings and voltage specifications. Consider physical footprint constraints when choosing alternatives, as chassis-mount filters vary significantly in dimensions. Verify that replacement options support the necessary certification requirements for the target market.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, which specializes in EMI/RFI suppression solutions for power electronics. The Corcom brand is widely recognized for robust filtering modules used in demanding industrial and commercial environments. This specific model represents a higher-current variant within the chassis-mount category, designed for applications requiring significant noise attenuation on main power feeds.

Replacement Considerations

Publicly confirmed substitute part numbers are not available for this obsolete component.
