4-6609089-7

Overview

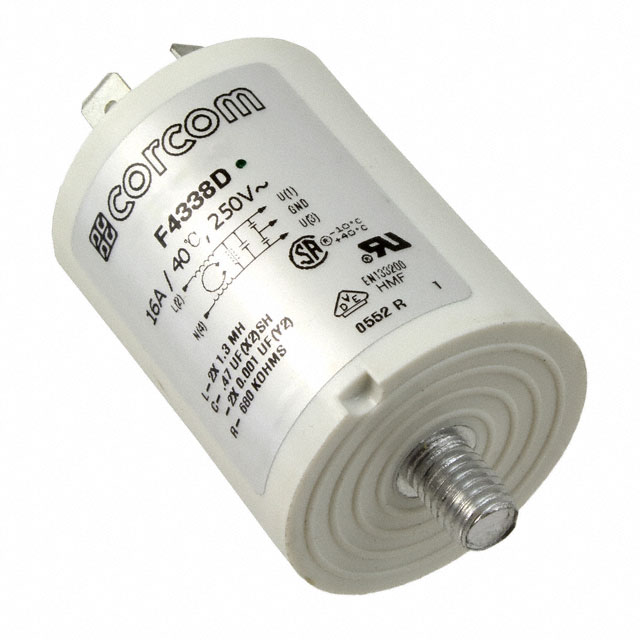

The TE Connectivity Corcom Filters part number 4-6609089-7 is a single-phase EMI/RFI power line filter designed for chassis or bulkhead mounting. It features a rated current of 16 A and operates at an AC voltage of 250 VAC within the 50/60 Hz frequency range. The component utilizes faston quick-connect terminals for electrical termination. Certified by CSA, UL, and VDE agencies, it complies with RoHS3 standards and is classified under ECCN EAR99.

Feature Summary

• Provides single-stage electromagnetic interference suppression for AC power lines
• Supports bulkhead or chassis installation configurations
• Equipped with faston quick-connect terminal interfaces

Applications

• Industrial equipment power input stages
• Medical device power conditioning
• General purpose electronic systems requiring EMI filtering

Procurement Notes

Verify the specific datasheet version and certification marks prior to procurement. Confirm that the faston terminal dimensions match the mating connector requirements. Ensure the operating temperature range aligns with the intended application environment. Check for any recent production changes or alternate sourcing notices from the manufacturer.

Selection Notes

Select this component when a 16 A single-phase filter is required for bulkhead applications. Compare against other WG series variants if different current ratings or terminal styles are needed. Ensure the leakage current specifications meet system safety limits. Validate compatibility with existing panel thickness constraints for bulkhead mounting.

Part Context

This component belongs to the Corcom WG series of single-phase filters manufactured by TE Connectivity. The series offers various current ratings and mounting options for power line noise suppression. The 4-6609089-7 variant specifically addresses higher current demands in compact chassis or bulkhead installations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
