4-6609089-8

Overview

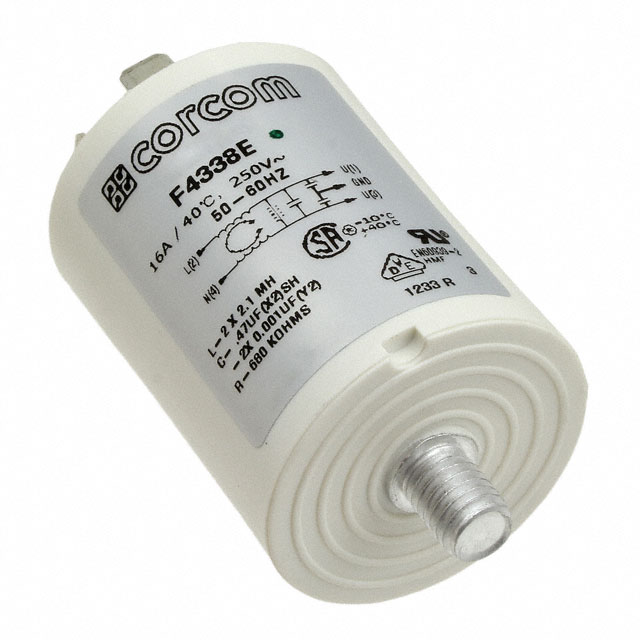

The TE Connectivity Corcom Filters model 4-6609089-8 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 16 A at 250 VAC and operates at 50/60 Hz frequencies. The component features a single-stage configuration with quick connect termination style utilizing threaded posts (M8).

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering architecture.
• Utilizes quick connect termination method with M8 threaded posts for secure assembly.

Applications

• General purpose electronic equipment requiring EMI/RFI mitigation
• Chassis-mounted power supply input stages

Procurement Notes

Verify the specific datasheet version for the 4-6609089-8 part number to confirm exact dimensional tolerances and terminal specifications. Ensure that the receiving equipment supports M8 threaded post connections and accommodates the required 16 A current rating within the intended operating temperature range.

Selection Notes

Select this component when a single-stage solution is sufficient for the application's noise environment. Confirm that the chassis mounting style aligns with the enclosure design. Verify that the M8 threaded post termination is compatible with the available wiring or busbar connection methods in the system architecture.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filter modules. These filters are engineered to reduce conducted emissions and improve immunity in electrical systems, ensuring compliance with relevant electromagnetic compatibility standards for commercial and industrial applications.

Replacement Considerations

Publicly confirmed substitute part numbers for 4-6609089-8 were not identified in the provided documentation. Consult manufacturer resources for potential cross-references.
