Product Detailed Parameters
- Description：LINE FLTR 520VAC 400A CHASS MNT
- Series：APH
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：400 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Post
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

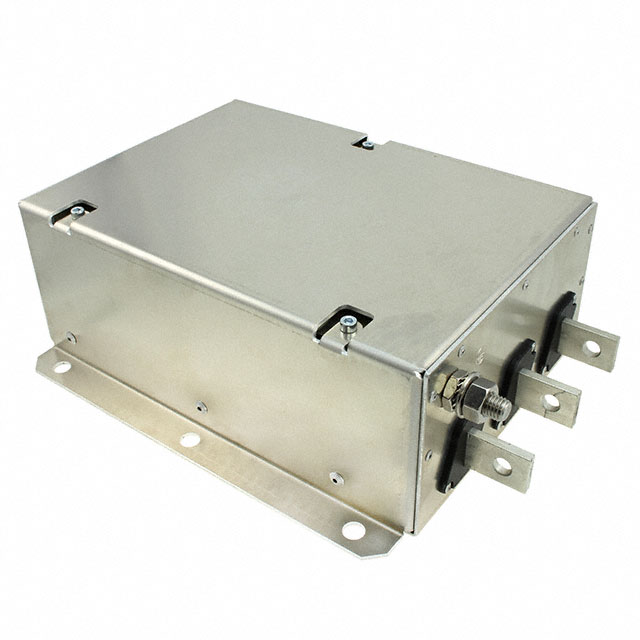

The TE Connectivity Corcom Filters 400APH12L is a three-phase (Delta) EMC/EMI line filter designed for high-current industrial applications. It features a chassis mount configuration with terminal post termination. The component operates at a rated voltage of 520VAC and supports a current rating of 400A at 50/60Hz frequencies. This unit belongs to the APH series, which incorporates robust construction suitable for demanding power conditioning environments.
Feature Summary
- Provides three-stage EMI/RFI filtering for three-phase Delta configurations
- Engineered for high-current handling up to 400A
- Utilizes compact chassis mount design for space-constrained installations
Applications
- General purpose industrial power conditioning
- Alternative energy systems integration
- High-power machinery noise suppression
Procurement Notes
Verify technical compatibility before procurement. Confirm that the application requires a three-phase Delta configuration and a 520VAC rating. Ensure the mounting infrastructure supports chassis installation and terminal post connections. Validate that the 400A current capacity aligns with system load requirements to prevent operational failure.
Selection Notes
Select this model when high-current three-phase filtering is required. The APH series offers a compact footprint compared to larger industrial filters. Consider the terminal post termination style for wiring convenience. Verify that the operating environment matches the general-purpose specifications provided in the official datasheet.
Part Context
This component is part of the TE Connectivity Corcom APH/APS series, specialized for high currents ranging from 250 Amps to 1600 Amps. The series is recognized for its compact size and suitability for alternative energy and heavy industrial applications. The 400APH12L specifically addresses the 400A requirement within this high-performance lineup.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity or authorized distributors for direct equivalents or cross-reference options based on specific electrical and mechanical constraints.
