400APS12L

Overview

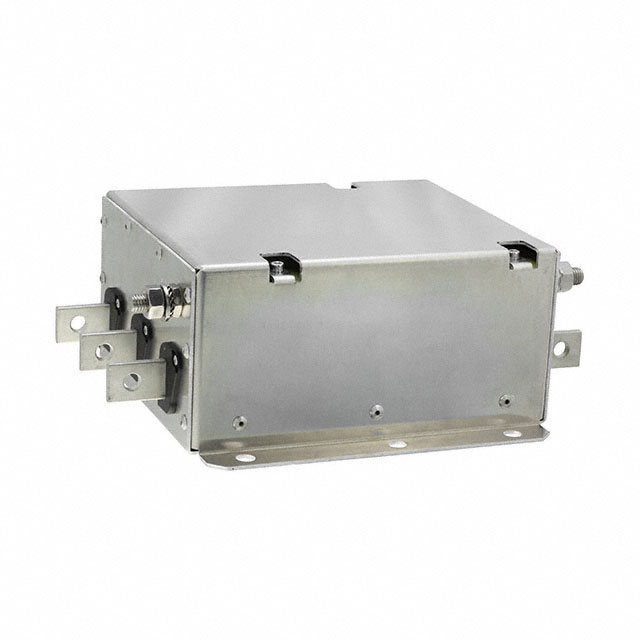

The TE Connectivity Corcom Filters 400APS12L is a three-phase power line filter designed for chassis mounting. It features a general-purpose configuration with a 520 VAC rating and supports up to 400 A current. The unit utilizes a three-stage filtering architecture to manage electromagnetic interference. Termination is achieved via quick-connect terminals, ensuring secure electrical connections within industrial power distribution systems.

Feature Summary

• Three-phase power line filtering capability
• Chassis mount installation style
• General-purpose application design

Applications

• Industrial power distribution units
• Large-scale machinery power supplies
• Electrical control cabinets

Procurement Notes

Verify the exact voltage and current ratings against specific system requirements before procurement. Confirm that the chassis mounting dimensions align with the enclosure design. Ensure the quick-connect terminal specifications match the available wiring harnesses in the target assembly.

Selection Notes

Select this component when high-current three-phase filtering is required for general-purpose applications. Consider the chassis mount form factor for integration into larger equipment frames. Evaluate the three-stage attenuation performance against specific EMI/RFI noise profiles in the operating environment.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in EMI/RFI suppression solutions. The 400APS12L represents a high-capacity solution within the lineup, targeting heavy-duty industrial environments where robust power line conditioning is essential for equipment reliability and regulatory compliance.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
