406-51020-51

Headers, Receptacles, Female Sockets Overview

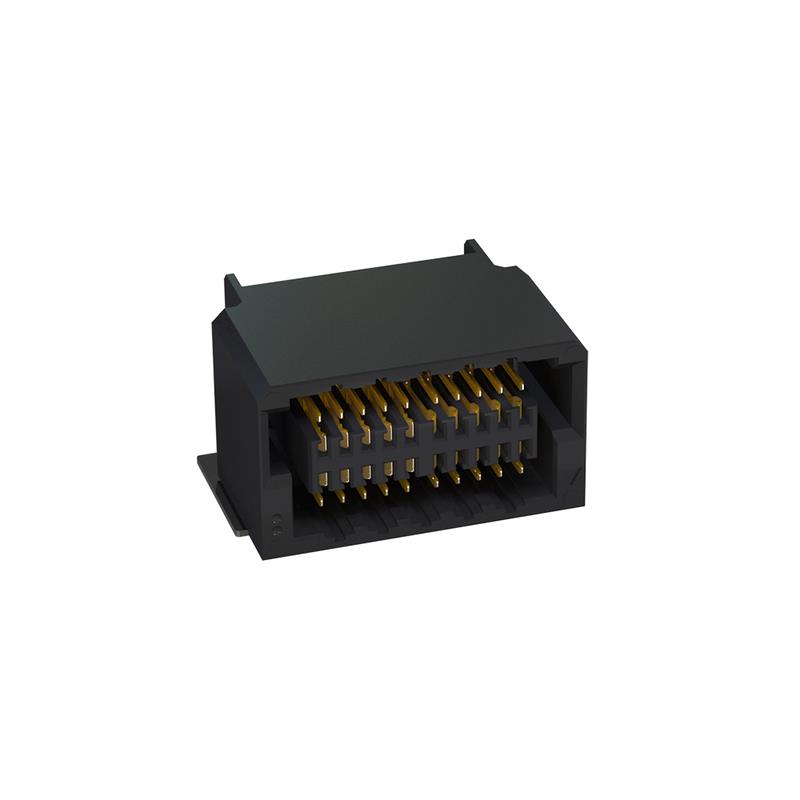

The EPT Inc. 406-51020-51 is a 20-position surface mount receptacle connector with a 0.80 mm pitch. It features gold-plated contacts and a right-angle design for PCB integration. The component operates within a temperature range of -40°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount configuration
• Gold-plated contact finish
• Shrouded housing design

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies
• Industrial control systems
• Automotive electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version for precise mechanical tolerances and mating partner compatibility. Confirm that the right-angle orientation matches the target PCB layout requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required for high-density board-to-board or cable-to-board applications. Ensure the 0.80 mm pitch aligns with existing footprint constraints and mating header specifications.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the EPT 406 series, which specializes in rugged, high-quality connection technology manufactured in Germany. The series is designed to meet demanding automotive and industrial standards for reliability and performance.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 20-position count, 0.80 mm pitch, right-angle form factor, and surface mount termination style. Verify pinout and shrouding details to ensure functional interchangeability.
