408-035-525-222

Edgeboard Connectors Overview

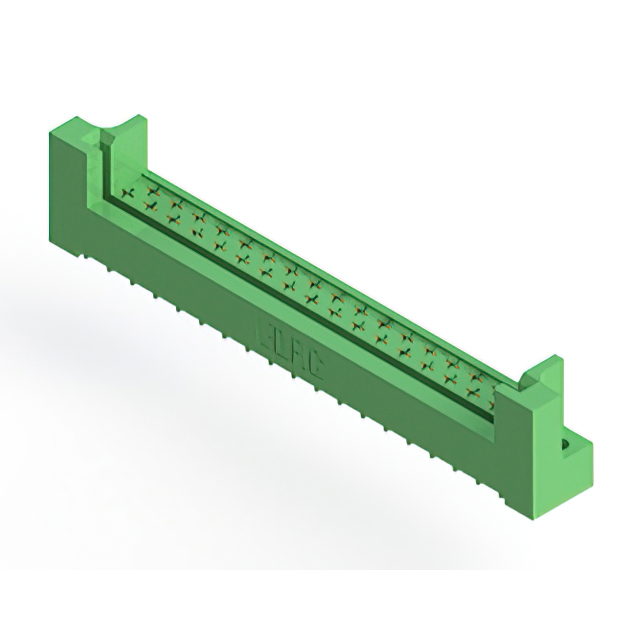

The EDAC Inc. part number 408-035-525-222 is a standard card edge connector from the 408 series, designed as a metal-to-metal two-piece assembly. It features 35 positions with a 0.200 inch (5.08 mm) pitch and utilizes gold-plated copper alloy contacts. The unit is constructed with a green diallyl phthalate (DAP) housing and supports a 10 A current rating. Designed for through-hole mounting at a vertical angle, it accommodates a board thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Metal-to-metal two-piece connector design ensures reliable interlocking contact
• Gold-plated copper alloy contacts provide corrosion resistance and conductivity
• Green diallyl phthalate housing offers durable insulation properties

Edgeboard Connectors Applications

• High reliability inter-lock applications
• Dual edge card edge connections
• Industrial electronic assemblies requiring robust mechanical locking

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet to confirm all electrical ratings and material specifications before integration. Ensure compatibility with the target PCB layout regarding hole spacing and board thickness constraints. Confirm that the required current capacity aligns with the operational load of the intended circuit design.

Edgeboard Connectors Selection Notes

Select this component when a secure mechanical lock between mating halves is critical for signal integrity. The 5.08 mm pitch suits applications requiring wider spacing between connection points. Verify that the vertical through-hole termination method matches the manufacturing process capabilities of the printed circuit board assembly line.

Edgeboard Connectors Part Context

This component belongs to the EDAC 408 series, which specializes in high-reliability inter-lock connectors. The series emphasizes mechanical stability alongside electrical performance, utilizing a two-piece configuration to prevent accidental disengagement during operation or vibration.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 408 series variants sharing identical pin counts and pitch dimensions. Verify that any substitute maintains the same metal-to-metal locking mechanism and housing material composition to ensure consistent mechanical fit.
