Product Detailed Parameters
- Description：LINE FILTER 440VAC 40A CHASS MNT
- Series：KEH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：40 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

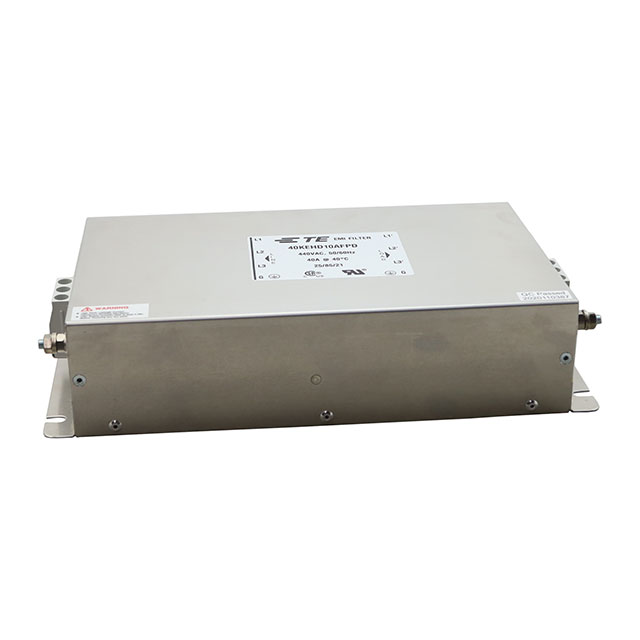

The TE Connectivity Corcom Filters model 40KEHD10AFPD is a three-phase power line filter designed for industrial applications. It operates at a rated voltage of 440 VAC and supports a current rating of 40 A. The unit functions at frequencies of 50 Hz and 60 Hz. It features chassis mount installation with screw termination. The device has physical dimensions of 270 mm in length, 140 mm in width, and 60 mm in height. It complies with UL and CSA standards.
Feature Summary
- Provides two-stage electromagnetic interference suppression for three-phase delta systems
- Designed for robust chassis mounting using screw terminations
- Constructed to operate reliably within specified industrial temperature ranges
Applications
- Industrial power system noise reduction
- Protection of sensitive equipment from electrical interference
- Three-phase EMC/EMI filtering in manufacturing environments
Procurement Notes
Verify component authenticity through authorized channels due to potential availability constraints. Confirm technical specifications against the official datasheet before integration. Ensure compliance with local safety regulations. Check for obsolescence status as supply may be limited. Validate mechanical fitment requirements prior to procurement.
Selection Notes
Select this model for three-phase delta configurations requiring 40 A capacity. Ensure chassis mounting space accommodates the specified dimensions. Verify that the 440 VAC rating matches the system voltage. Confirm compatibility with existing screw termination methods. Assess thermal management needs within the operating temperature range.
Part Context
This component belongs to the KEH series of power line filters manufactured by TE Connectivity under the Corcom brand. The series focuses on high-performance EMI/EMC filtration for industrial power distribution. The 40KEHD10AFPD variant specifically addresses three-phase delta applications with moderate current requirements.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct equivalents or updated series replacements.
