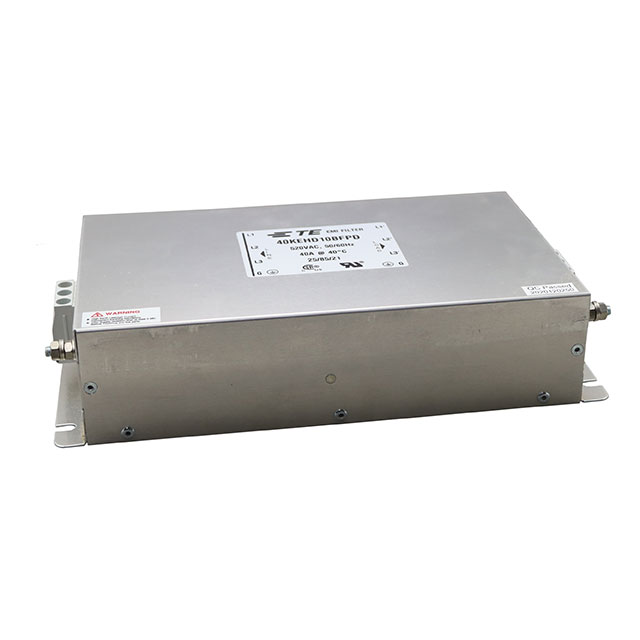

40KEHD10BFPD

$260.89

Description：LINE FILTER 520VAC 40A CHASS MNT
Series：KEH
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:ce7e91e9e403 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 40A CHASS MNT
Series：KEH
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：40 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

40KEHD10BFPD

Overview

The TE Connectivity Corcom Filters 40KEHD10BFPD is a three-phase (Delta) EMC/EMI power line filter designed for industrial applications. It supports a rated current of 40 A and operates at voltages up to 520 VAC. The unit functions as a two-stage filter, providing effective noise suppression across 50 Hz and 60 Hz frequencies. It features flanged chassis mounting with terminal block connections, ensuring secure installation in demanding electrical environments.

Feature Summary

Provides two-stage EMI/EMC noise filtration for three-phase Delta power systems
Engineered for high-current industrial operations up to 40 Amperes
Utilizes robust terminal block termination for reliable electrical connectivity
Designed with a flanged chassis mount configuration for structural stability

Applications

Industrial motor drive systems requiring noise suppression
Three-phase power distribution panels in manufacturing facilities
Heavy machinery control cabinets operating on Delta configurations
Electrical infrastructure subject to strict electromagnetic compatibility standards

Procurement Notes

Verify the specific voltage rating of 520 VAC against your system requirements before procurement. Confirm that the three-phase Delta topology matches your circuit design. Ensure the terminal block connection style is compatible with your wiring harness or busbar setup. Check for any recent product change notices regarding component sourcing or material composition updates.

Selection Notes

Select this model when a two-stage filtration approach is required for three-phase Delta circuits. Consider the 40 A current capacity to ensure adequate headroom for peak loads. Evaluate the physical dimensions of the flanged chassis mount to verify fit within the enclosure. Compare terminal block options against available screw or clamp types for ease of assembly.

Part Context

This component belongs to the KEH series of power line filters from TE Connectivity Corcom Filters. The series is characterized by high-performance EMI/EMC suppression capabilities tailored for industrial power electronics. These filters are engineered to meet rigorous international safety and emissions standards for heavy-duty electrical equipment.
