Product Detailed Parameters
- Description：LINE FILTER 440VAC 40A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：40 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

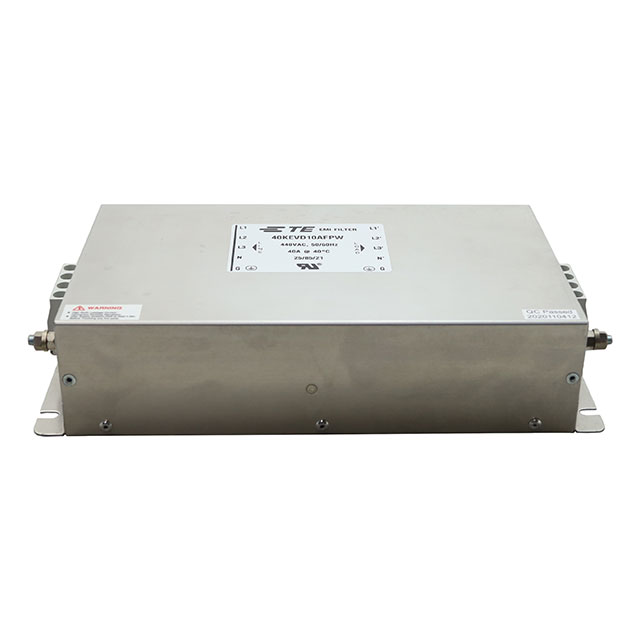

The 40KEVD10AFPW is a three-phase very high-performance EMI filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 440 VAC and handles up to 40 A current. Designed for chassis mounting, it utilizes screw terminals for secure connection. The unit operates at 50 Hz or 60 Hz with a maximum leakage current of 15 mA. Physical dimensions are 350 mm in length, 92 mm in width, and 160 mm in height. It functions within a temperature range of -25 °C to +85 °C and holds UL and CSA compliance certifications.
Feature Summary
- Provides very high-performance electromagnetic interference suppression for three-phase power lines
- Features a two-stage filtering configuration for enhanced noise attenuation
- Supports direct chassis mounting with robust screw terminal connections
Applications
- Industrial machinery requiring strict EMI/EMC compliance
- Three-phase power distribution systems operating at 440 VAC
- Equipment sensitive to high-frequency electrical noise
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm specific datasheet revisions match project requirements. Check for RoHS and REACH compliance status updates. Ensure mechanical fitment aligns with chassis specifications. Validate thermal management capabilities within the specified operating temperature range.
Selection Notes
Select this model when very high-performance filtering is required for three-phase applications. Compare leakage current limits against safety standards. Evaluate physical dimensions against available enclosure space. Consider the 40 A current rating relative to load requirements. Verify compatibility with existing screw terminal infrastructure.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The series focuses on high-performance EMI suppression for industrial environments. Similar models include variants with different current ratings such as the 100KEVD10AFPW. The KEV designation indicates specific performance characteristics within the broader Corcom portfolio.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for cross-reference options.
