Product Detailed Parameters
- Description：LINE FILTER 520VAC 40A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：40 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

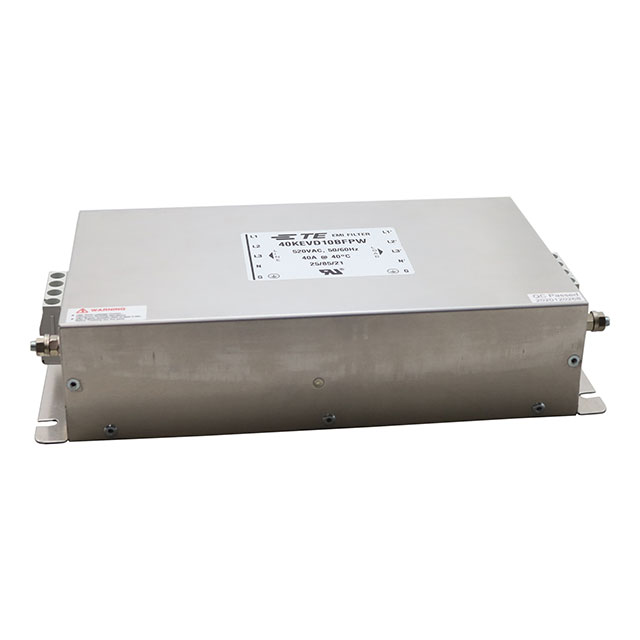

The 40KEVD10BFPW is a three-phase very high-performance EMI filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 440 VAC and handles a current rating of 40 A at operating frequencies of 50 Hz and 60 Hz. Designed for chassis mounting, the unit features screw termination style with dimensions of 270 mm in length, 140 mm in width, and 60 mm in height. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides three-phase very high-performance EMI filtering capabilities
- Supports chassis mounting configuration for industrial integration
- Utilizes screw termination style for secure electrical connections
Applications
- Industrial power distribution systems requiring EMI suppression
- Three-phase machinery protection against electromagnetic interference
- Chassis-mounted power line conditioning applications
Procurement Notes
Verify the exact suffix BFPW against official TE Connectivity documentation to confirm specific terminal configurations and packaging details. Confirm current availability status as components may be subject to lifecycle changes or regional distribution restrictions. Ensure compatibility with existing chassis mounting hardware and screw termination requirements before procurement.
Selection Notes
Select this model when three-phase very high-performance EMI filtration is required for 440 VAC systems. Ensure the application supports chassis mounting and accommodates the specified physical dimensions. Verify that screw termination aligns with the system's wiring infrastructure and that UL/CSA certifications meet regulatory standards for the intended deployment environment.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The KEV series is engineered for demanding industrial environments, offering robust electromagnetic interference suppression for three-phase AC power lines. These filters are designed to protect sensitive equipment from conducted noise while maintaining stable power delivery under high current loads.
Replacement Considerations
Publicly confirmed substitute part numbers for this specific model were not identified in the provided source material.
