40VK6

Overview

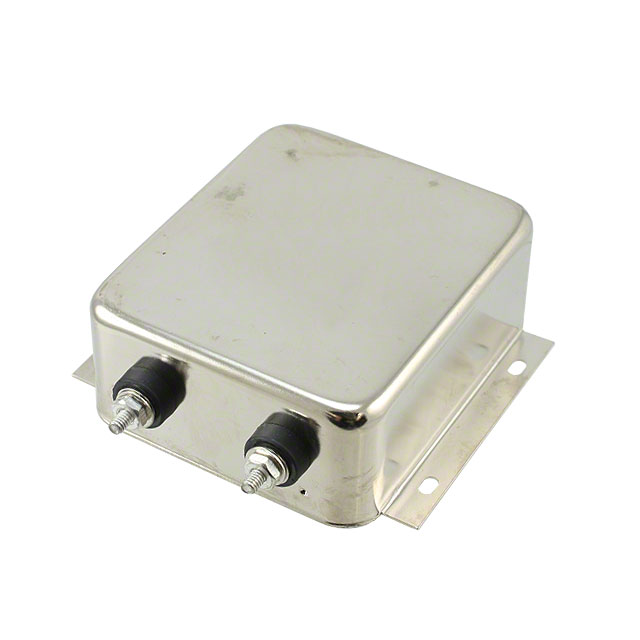

The TE Connectivity Corcom Filters 40VK6 is a single-phase EMC/EMI power line filter rated for 40 A at 250 VAC. Operating at 50 Hz and 60 Hz, it utilizes a threaded bolt post termination style with an 8-32 thread specification. The unit employs a flange mounting configuration designed for chassis installation. It functions as a single-stage filter intended to suppress electromagnetic interference in AC power circuits.

Feature Summary

• Single-phase EMI/RFI suppression capability
• Threaded bolt post termination for secure electrical connection
• Flange mounting design for stable chassis integration

Applications

• Industrial machinery power input stages
• Commercial equipment requiring EMI filtering
• General purpose AC power conditioning systems

Procurement Notes

Verify the specific thread size and current rating requirements against the application load. Confirm that the flange mounting dimensions align with the chassis cutout. Ensure the termination method matches the available wiring infrastructure. Check for any regional compliance certifications required for the final assembly.

Selection Notes

Select this component when a 40 A capacity is necessary for single-phase applications. The threaded post termination is suitable for high-current connections requiring robust mechanical stability. Consider the flange mount style if panel or chassis space allows for direct bolting. Evaluate the single-stage filtering performance against system noise immunity needs.

Part Context

This part belongs to the TE Connectivity Corcom K series of power line filters. The series provides various current ratings and mounting options for industrial and commercial applications. The 40VK6 specifically addresses higher current demands within the single-phase segment using a threaded post interface.

Replacement Considerations

No public confirmed substitute part numbers are available.
