Product Detailed Parameters
- Description：FILTER LC(PI) 1500PF CUSTOM
- Series：4100
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：25dB @ 100MHz
- Resistance - Channel (Ohms)：-
- Values：C = 1500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：200V
- Mounting Type：Custom
- Package / Case：Axial, Eyelet
- Size / Dimension：0.110" Dia x 0.275" L (2.79mm x 6.99mm)
- Height：-
- Current：15 A
Download product information
Overview

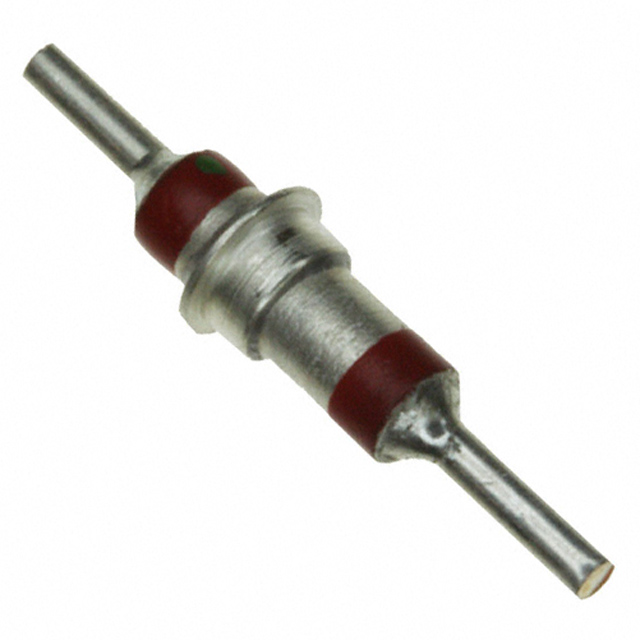

The 4100-002LF is a Pi filter EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 1500 pF and a rated voltage of 350 V. The component supports a maximum DC current of 15 A and utilizes LC technology for low-pass filtering. Its physical dimensions are 3.51 mm in diameter and 0.296 inches in length. Designed for robust performance, it operates within a temperature range of -55°C to 125°C.
Feature Summary
- Provides effective electromagnetic interference suppression through a third-order low-pass Pi filter circuit topology.
- Capable of handling high continuous DC currents up to 15 A while maintaining signal integrity.
- Constructed with axial leads suitable for panel mounting or chassis penetration applications.
Applications
- Power supply input filtering for electronic equipment
- EMI suppression in industrial control systems
- Signal conditioning in aerospace and defense electronics
Procurement Notes
Verify the specific suffix requirements against the manufacturer's latest datasheet to ensure compliance with RoHS directives and lead configuration. Confirm that the 350 V rating and 15 A current capacity align with the system's operational limits before finalizing procurement orders.
Selection Notes
Select this component when a compact axial feedthrough solution is required for high-voltage applications. The 1500 pF capacitance offers a balance between noise attenuation and signal pass-through. Ensure the enclosure allows for proper grounding of the outer conductor to maximize filtering effectiveness.
Part Context
This part belongs to the 4100 series of EMI feedthrough filters from Tusonix. These components are designed for harsh environments and provide reliable shielding against radio frequency interference. The series includes various capacitance and voltage ratings to suit different power line requirements.
FAQ
What is the circuit topology of the 4100-002LF?
It utilizes an LC (Pi) filter topology, which provides third-order low-pass filtering characteristics.
Is the 4100-002LF compliant with RoHS standards?
Yes, the component is RoHS compliant as indicated in the product specifications.
